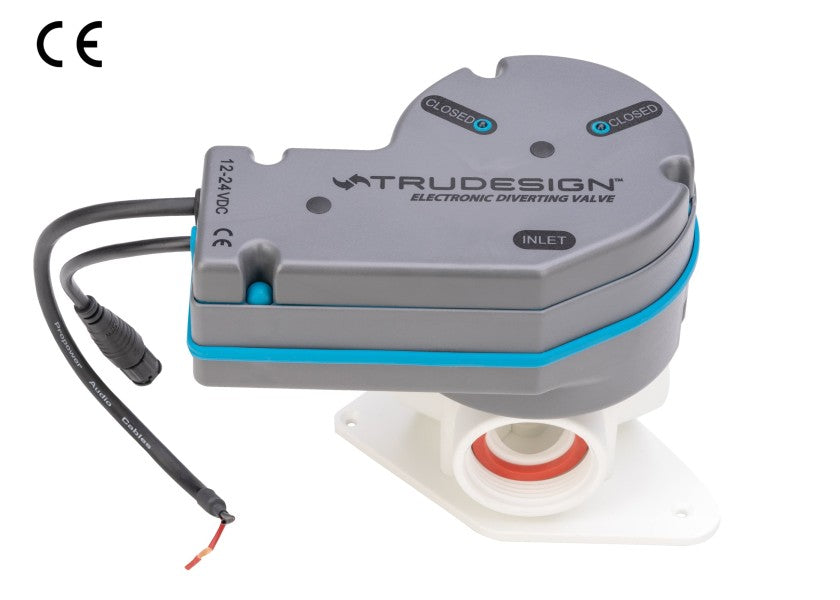

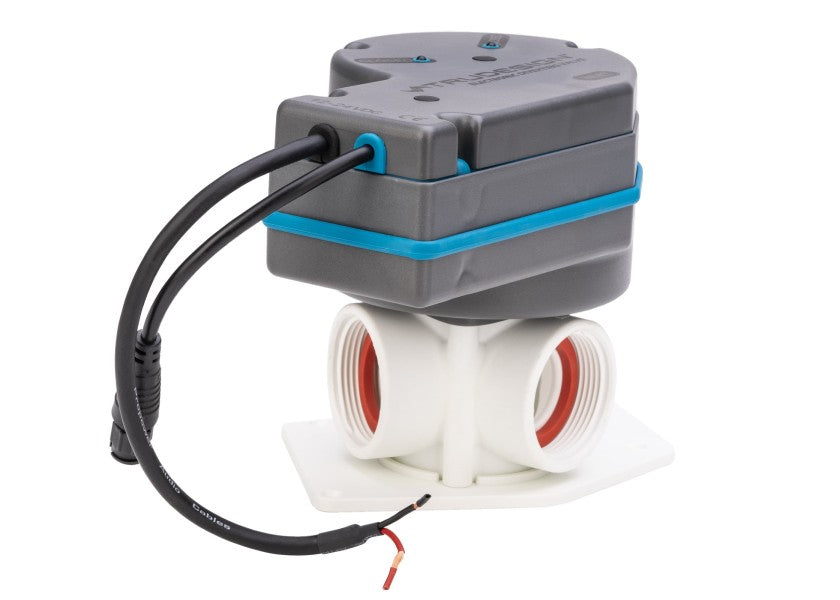

TruDesign 91278 Electronic Diverting Valve 12-24VDC White

TruDesign 91278 Electronic Diverting Valve 12-24 VDC (White)

The TruDesign 91278 (Electronic Aquavalve) is an IP67-rated motorized 3-way electronic diverting valve (Y-valve) engineered for automated remote fluid routing in marine sanitation, greywater, and bilge systems. Capable of operating across both 12V DC and 24V DC electrical systems, this valve allows boaters to direct marine toilet discharge either to an onboard holding tank or directly overboard (where legally permitted) at the push of a helm- or head-mounted switch.

Manufactured in New Zealand from high-rigidity glass-reinforced nylon composite, the valve eliminates metallic corrosion, freezing/binding issues, and electrolysis. The electronic actuator module features dual-voltage smart control circuitry with auto-sensing 9-32V DC operation, low current draw, stall detection, and manual override capability in the event of total electrical power loss.

Key Features

• Remote Push-Button Operation: Eliminates the need to climb into tight engine spaces or bilges to manually turn Y-valves.

• Auto-Sensing 12V/24V DC Drive: Compatible with both 12V and 24V vessel electrical banks without needing step-down converters or internal jumper changes.

• Corrosion-Free Composite Body: Non-conductive glass-reinforced nylon construction prevents scale buildup, chemical degradation from blackwater/toilet acid treats, and electrolysis.

• Manual Emergency Override: Features an integrated emergency override mechanism to manually turn the internal diversion spool if DC vessel power fails.

• IP67 Sealed Actuator Drive: Sealed motor unit resists bilge moisture, high-humidity engine rooms, and washdown spray.

Specifications
