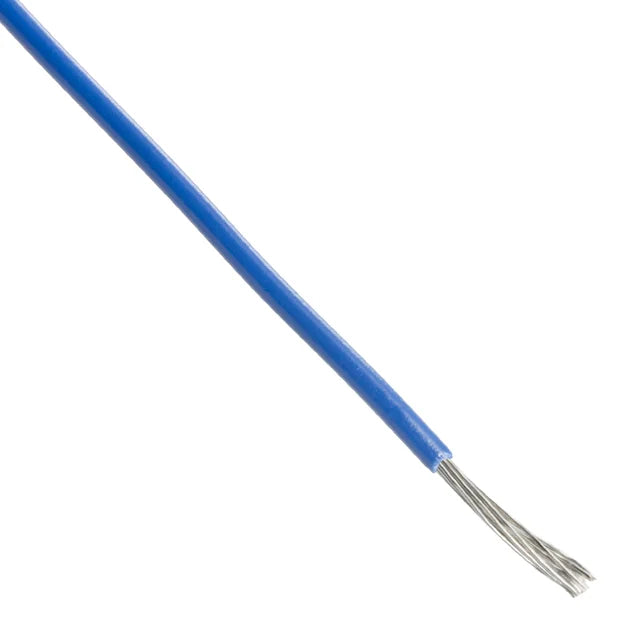

Tricab UP-XXXD/1C1.5BL 1.5mm2 Tinned Marine Cable Blue (Per Meter)

Tricab UP-XXXD/1C1.5BL 1.5mm² Single-Core Tinned LSZH Marine Power Cable Blue (Per Meter)

The Tricab UP-XXXD/1C1.5BL is a premium, ultra-flexible 1.5mm² (16AWG) single-core low-smoke zero-halogen (LSZH) marine-grade power wire engineered for DC and AC power distribution, control wiring, and instrumentation circuits across marine vessels, offshore rigs, and industrial applications. Constructed with high-strand tinned annealed copper wire (TACW) insulated by a cross-linked polyolefin (HF-90 / XLPO) compound, it offers exceptional resistance to seawater, oil splash, acid, ozone, and UV exposure.

Designed to meet severe fire safety standards including IEC 60332-3-22 (Category A flame retardancy) and IEEE-45, the cable produces minimal toxic smoke and no corrosive acid gases during a fire event. Featuring an ultra-compact minimum bending radius of just 7mm, the UP-XXXD/1C1.5BL easily navigates tight cable trunks, conduit bends, and switchboard backplanes without stressing internal conductors or causing jacket cracking.

Key Features

• Ultra-Low 7mm Bend Radius: Extremely tight minimum bend radius enables effortless routing in dense electrical enclosures and narrow vessel chases.

• Tinned Annealed Copper (TACW): High-strand tinned copper conductors resist inter-strand oxidation and salt corrosion while maintaining high flexibility.

• Flame Retardant & LSZH (HF-90): Meets IEC 60332-3-22 Category A and IEEE-45 standards, emitting zero halogens and low smoke during fires.

• Wide Thermal Operational Window: Retains flexibility from -40°C up to +110°C continuous conductor rating (90°C marine standard rating).

• Oil, Chemical, & Seawater Resistance: Engineered compound resists skydrol, diesel, petrol, battery acid, and constant marine weathering.
