Tricab - Marine Grade 10mm^2 Tinned Cable - UP-XXXD/1C10RE (RED) Per Metre
Tricab - Marine Grade 10mm^2 Tinned Cable - UP-XXXD/1C10RE (RED) Per Metre
100 in stock
Couldn't load pickup availability
Tricab - Marine Grade Tinned Cable - UP-XXXD/1C10RE (RED)
Type: 10mm2 0.6/1KV 90C IEC 60332-3-22 IEEE-45 LSZH TACW
Colour: RED
Price: Per metre - Contact onlinesales@obmghk.com for high volume orders.
-

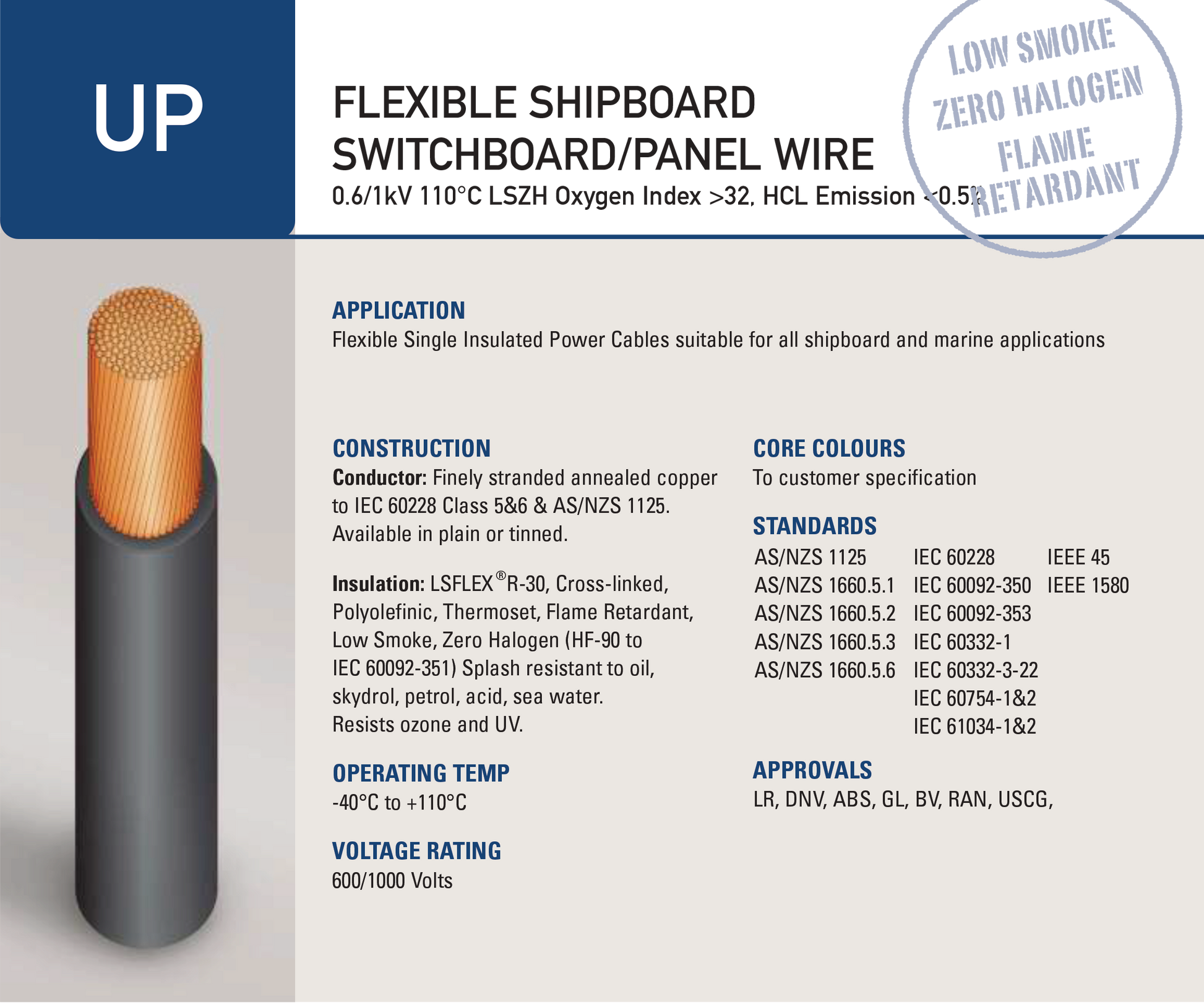

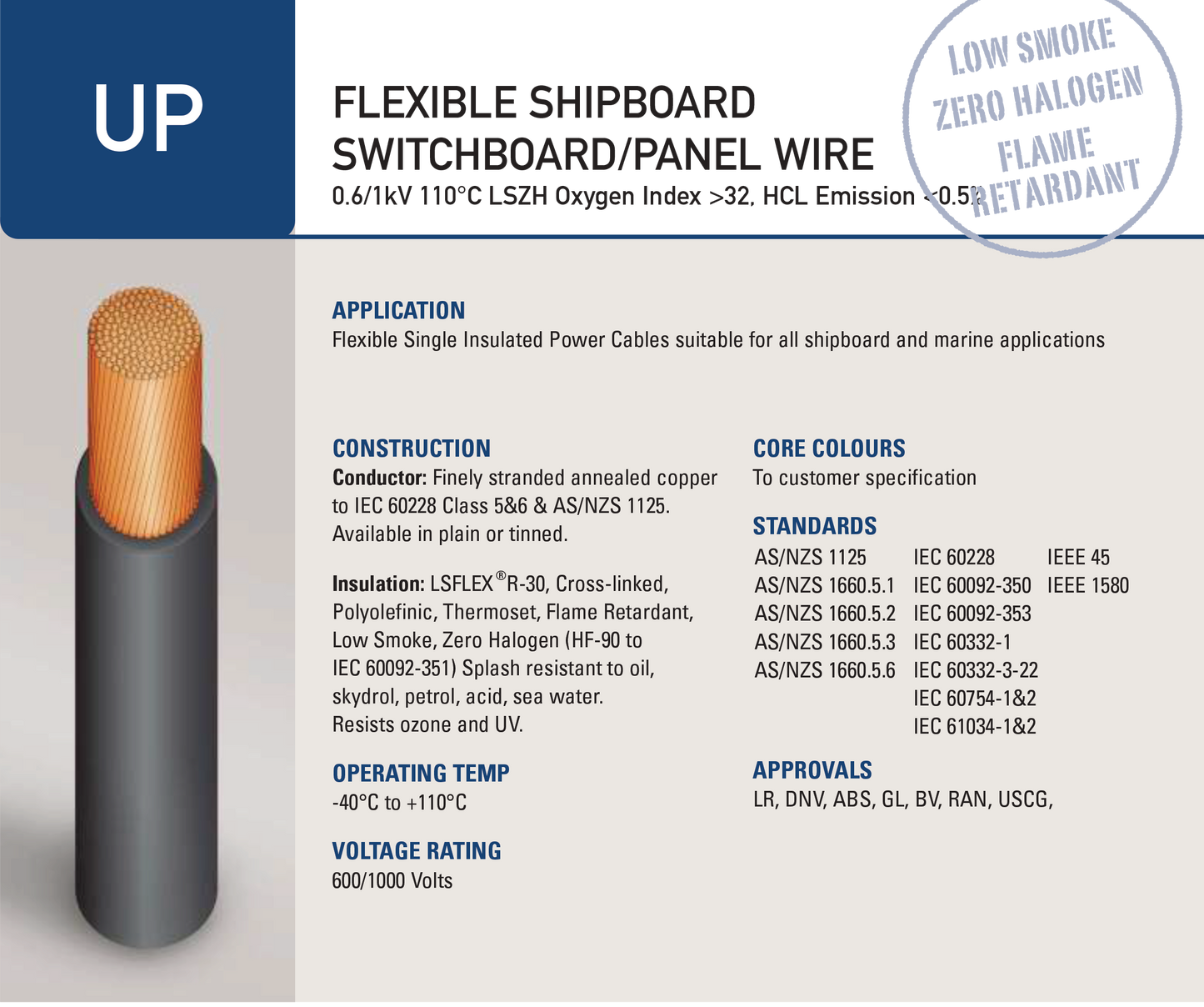

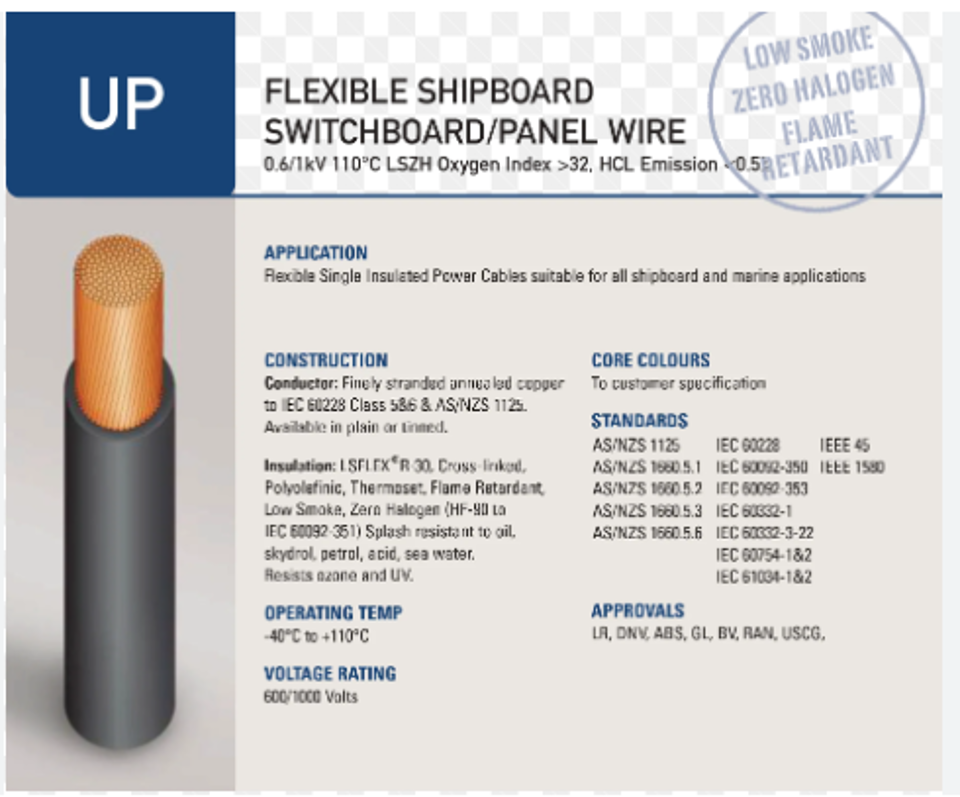

FLEXIBLE SHIPBOARD SWITCHBOARD/PANEL WIRE
APPLICATION
Flexible Single Insulated Power Cables suitable for all shipboard and marine applications
CONSTRUCTION
Conductor: Finely stranded annealed copper to IEC 60228 Class 5&6 & AS/NZS 1125. Available in plain or tinned.
Insulation: LSFLEX®R-30, Cross-linked, Polyolefinic, Thermoset, Flame Retardant, Low Smoke, Zero Halogen (HF-90 to
IEC 60092-351) Splash resistant to oil, skydrol, petrol, acid, sea water.
Resists ozone and UV.
STANDARDS
AS/NZS 1125 AS/NZS 1660.5.1 AS/NZS 1660.5.2 AS/NZS 1660.5.3 AS/NZS 1660.5.6
IEC 60228, IEC 60092-350 IEC 60092-353 IEC 60332-1 IEC 60332-3-22 IEC 60754-1&2 IEC 61034-1&2
IEEE 45 IEEE 1580
APPROVALS
LR, DNV, ABS, GL, BV, RAN, USCG
OPERATING TEMP
-40°C to +110°C
VOLTAGE RATING
600/1000 Volts
