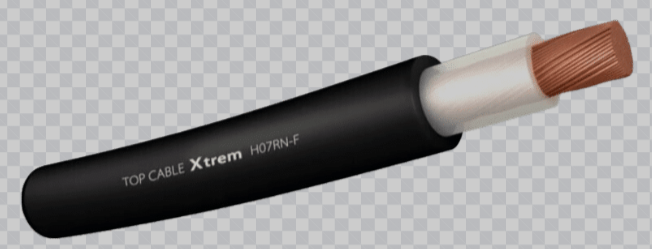

Top Cable Xtrem H07RN-F 1x35mm² Heavy-Duty Rubber Cable

Top Cable Xtrem H07RN-F Single-Core 35mm² Heavy-Duty Flexible Rubber Cable

The Top Cable Xtrem H07RN-F 1x35mm² is a premium, single-core 35mm² (2 AWG equivalent) harmonized rubber-sheathed power cable engineered for heavy DC battery links, inverter primary feeds, generator outputs, shore power connections, and mobile industrial machinery. Rated at 450/750V AC (0.6/1kV DC), it features high-flexibility Class 5 fine-stranded electrolytic copper conductors insulated with Ethylene Propylene Rubber (EPR) and protected by a vulcanized Chloroprene (Neoprene) outer jacket.

Designed to perform under extreme mechanical stress, continuous vibration, chemical exposure, and direct weather or saltwater contact, this cable maintains full flexibility at sub-zero temperatures (down to -40°C). It is rated for permanent submersion (AD8 deep water) and complies with marine shipboard wiring standards under IEC 60092-353 and ABYC guidelines for flexible power distribution.

Key Features

• Heavy Polychloroprene (Neoprene) Sheath: Exceptional resistance to oil, fuel, grease, ozone, UV radiation, and mechanical abrasion.

• Class 5 Fine Copper Stranding: Ultra-flexible design allows effortless routing around tight bulkheads, engine room corners, and inside conduit.

• AD8 Permanent Submersion Rating: Water-resistant construction permits continuous submersion in salt or fresh water.

• Wide Thermal Range: Operates reliably from -40°C up to +90°C continuous conductor operating temperature.

• Flame Retardant (IEC 60332-1): Self-extinguishing jacket enhances fire safety in shipboard and industrial enclosures.
