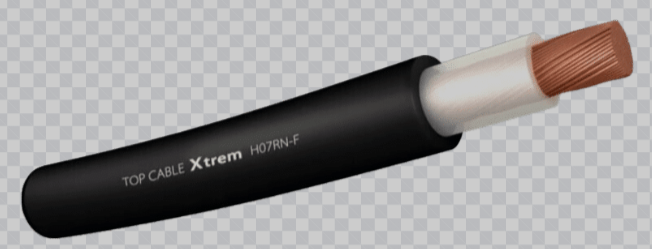

Top Cable Xtrem H07RN-F 1G25mm² Heavy-Duty Rubber Cable

Top Cable Xtrem H07RN-F 1x25mm² Heavy-Duty Flexible Rubber Cable

The Top Cable Xtrem H07RN-F 1x25mm² (Part Code: H07RN-F1G25) is a premium heavy-duty single-core flexible rubber power cable designed to perform under extreme mechanical stress, chemical exposure, and continuous submersion. Engineered for industrial distribution boards, high-current marine battery links, shore power feeds, and mobile generators, it features a Class 5 fine-stranded plain copper conductor rated for nominal voltages up to 450/750 V (and up to 0.6/1 kV in fixed, protected installations).

Insulated with high-grade thermosetting flexible rubber (EPR) and jacketed in a heavy-duty black polychloroprene (neoprene) outer sheath, the Xtrem H07RN-F exhibits exceptional resistance to ozone, UV radiation, oils, greases, and harsh weather conditions. Crucially for marine applications, it carries a certified AD8 (IP68) water resistance rating, making it suitable for continuous permanent submersion in fresh and salt water.

Key Features

• Extreme Flexibility (Class 5): Multi-stranded annealed copper wire structure facilitates easy bending and routing through tight engine spaces, conduits, and cable trays.

• AD8 Permanent Submersion Rated: Certified to operate continuously under water (IP68 rating), ideal for marine bilges, submersible pumps, and dockside feeds.

• Heavy-Duty Rubber Outer Sheath: Outstanding resistance to mechanical abrasion, impacts, oils, fuels, grease, and aggressive chemical splashes.

• High Thermal Endurance: Operates at conductor temperatures up to +90°C (110°C overload) and maintains flexibility in sub-zero environments down to -40°C.
