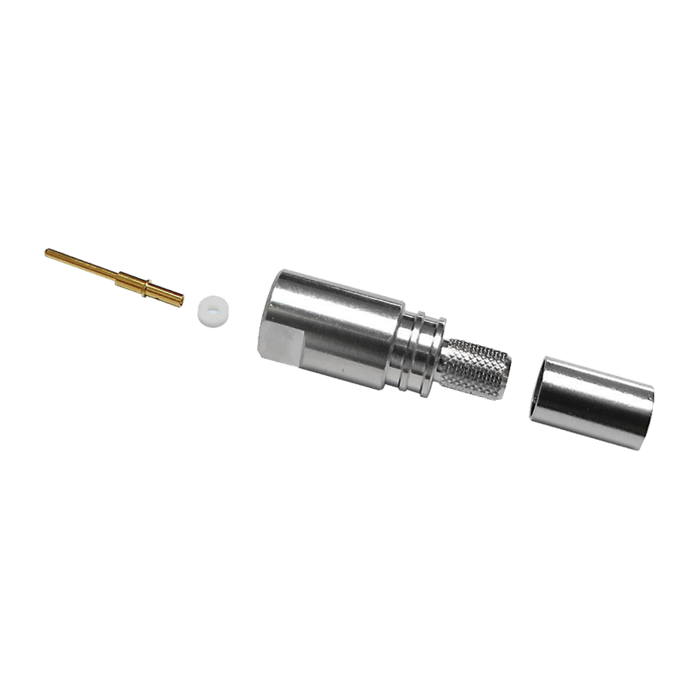

Times Microwave 3190-6251 FME Male Crimp Connector

Times Microwave 3190-6251 FME Male Straight Crimp Plug (LMR-195 / RG-58)

The Times Microwave Systems 3190-6251 is a compact, commercial-grade 50-Ω FME (For Mobile Equipment) straight male plug RF coaxial connector. Engineered primarily for small-diameter low-loss coaxial cables such as LMR-195, LMR-195-UF, RG-58, and Belden 8240, this connector provides high signal integrity across mobile, cellular, GPS, and marine VHF communication frequencies up to 3 GHz.

Utilizing a solder-center pin and crimp-outer ferrule assembly design, the 3190-6251 ensures a solid mechanical and electrical connection between the inner conductor and outer shield braid. The slim thread-on FME interface is specifically designed to allow pre-terminated coaxial cables to be fished through narrow cable runs, bulkheads, and mast conduits before attaching final equipment adapters (FME to PL-259, N-Type, or BNC), making it an essential component for marine antenna installations and mobile radio setups.

Key Features

• Slim-Profile Conduit Friendly: Extremely small outer diameter allows pre-terminated cable assemblies to pass easily through tight grommets, deck glands, and wire conduits.

• Solder Center Contact: Provides maximum mechanical retention and low contact resistance under thermal stress and vessel movement.

• Nickel Plated Marine Durability: Heavy-duty nickel-plated brass construction offers superior corrosion resistance in marine and outdoor environments.

• Low Loss up to 3 GHz: Precision-machined 50-Ω architecture maintains low VSWR across cellular, 4G LTE, GPS, and marine radio spectrums.

Specifications
