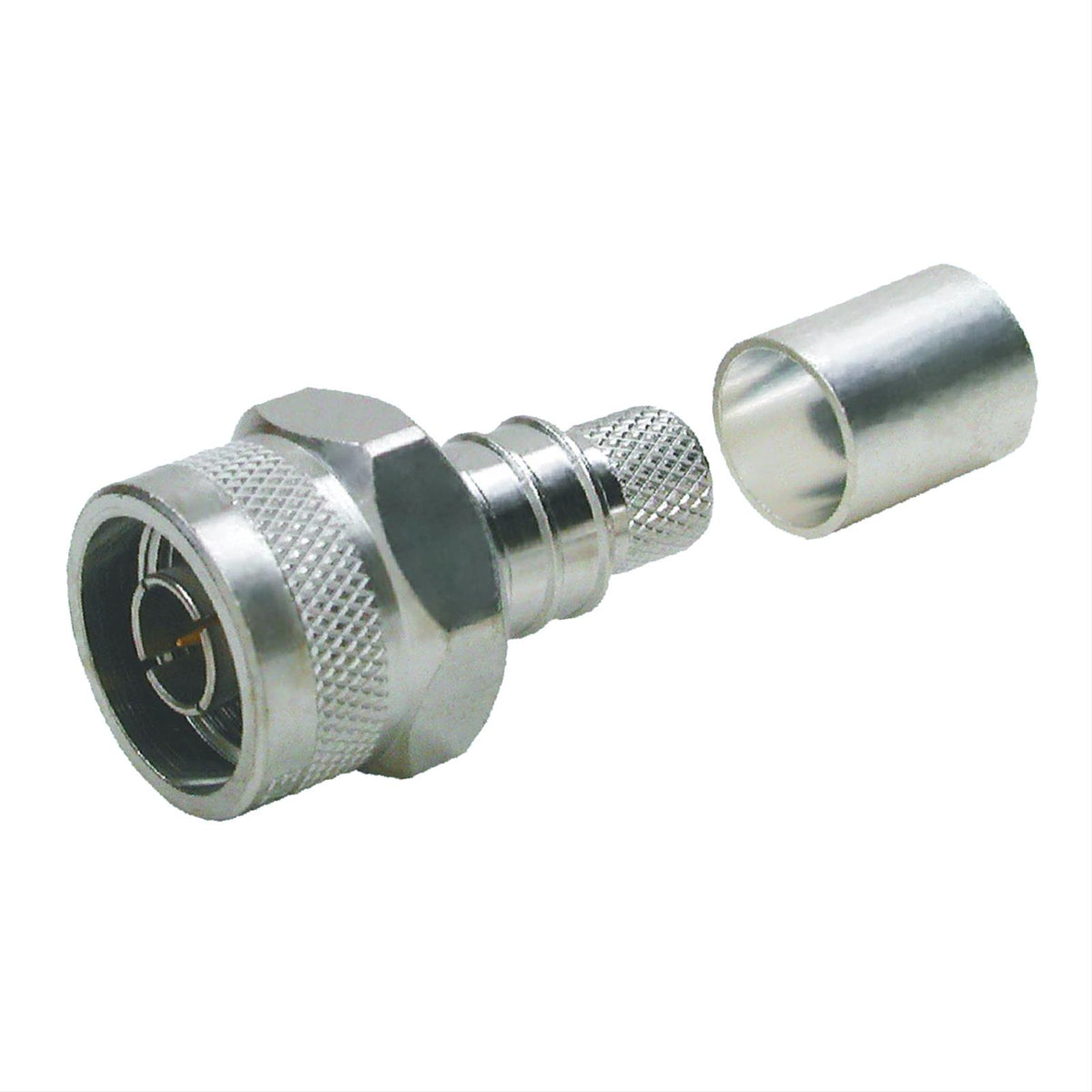

Times Microwave EZ-400-NMH-X N-Male Connector

Times Microwave EZ-400-NMH-X N-Male Non-Solder Crimp Connector (LMR-400)

The Times Microwave Systems EZ-400-NMH-X (Stock Code: 3190-2590) is a commercial-grade, high-performance 50-Ω N-Male straight (plug) RF coaxial connector optimized for 400-size low-loss coaxial cables, including LMR-400, TCOM-400, and T-RAD-400-FR. Part of Times Microwave's advanced EZ series, this connector eliminates soldering errors and heat degradation of the foam dielectric by using a captive spring-finger beryllium copper center contact alongside a crimp outer ferrule.

Designed with an "X" suffix designation, the connector utilizes a no-braid-trim architecture, simplifying field strip preparation and speeding up assembly. It features an Alballoy-plated brass body for maximum corrosion resistance in marine environments, PTFE insulation, and a versatile combination hex/knurl coupling nut that allows for both hand-tightening during temporary setups and calibrated wrench torquing during permanent outdoor installations.

Key Features

• Solderless Center Pin Assembly: Captive spring-finger beryllium copper pin eliminates soldering, reducing install time while preventing cold joints and insulation melt-back.

• No-Braid Trim ("X" Series): Streamlines cable prep by allowing the braid wire to sit directly under the ferrule without requiring secondary braid trimming.

• Hex / Knurl Combination Nut: Supports quick hand-tightening or precise wrench torquing (14 mm / 18 mm hex flat compatible) to satisfy exact IP-rated weatherproofing torque specs.

• Alballoy Corrosion Resistance: Tri-metal (Copper-Tin-Zinc) body plating provides non-magnetic, corrosion-proof performance superior to standard nickel plating in salt-air marine environments.

Specifications
