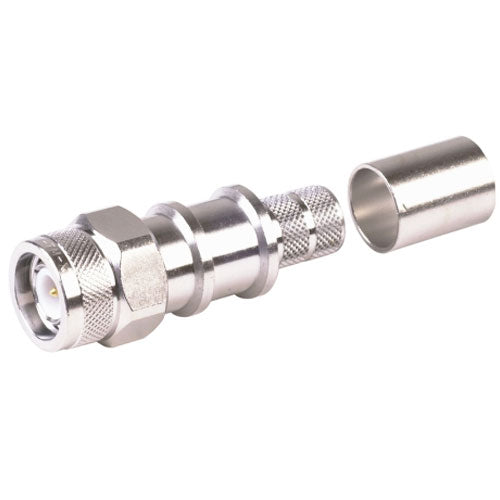

Times Microwave EZ-400-TM-X TNC Male Connector

Times Microwave EZ-400-TM-X TNC Male Non-Solder Crimp Connector (LMR-400)

The Times Microwave Systems EZ-400-TM-X (Stock Code: 3190-2533) is a high-performance 50-ΩTNC straight male (plug) RF coaxial connector engineered specifically for 400-size low-loss coaxial cables, including LMR-400, TCOM-400, and T-RAD-400-FR. Part of Times Microwave's innovative EZ non-solder design line, it eliminates assembly errors, Foreign Object Debris (FOD), and soldering thermal damage by utilizing a captive spring-finger beryllium copper center contact alongside a crimp outer ferrule.

Constructed with an Alballoy-plated brass body (copper-tin-zinc) for high corrosion resistance and low intermodulation, a gold-plated center pin, and a weather-tight threaded coupling mechanism, the EZ-400-TM-X is rated for frequency operation up to 6 GHz. The spring-finger contact mechanism maintains continuous high contact pressure during extreme temperature shifts and severe high-vibration marine/offshore environments where cable contraction can occur.

Key Features

• Solderless Center Pin Assembly: Captive beryllium copper spring-finger pin eliminates messy soldering, cold joints, and heat damage to cable insulation.

• High-Vibration & Extreme Temp Resilience: Constant spring force prevents signal loss caused by thermal contraction of the center conductor in harsh offshore conditions.

• Alballoy Plated Corrosion Proofing: Tri-metal (Copper-Tin-Zinc) body plating offers superior corrosion protection over standard nickel plating in saltwater environments.

• Threaded Weatherproof TNC Coupling: Threaded engagement provides mechanical stability and low vibration sensitivity over standard bayonet-style connectors.

Specifications
