TBS Electronics 5074520 24V Remote Battery Switch

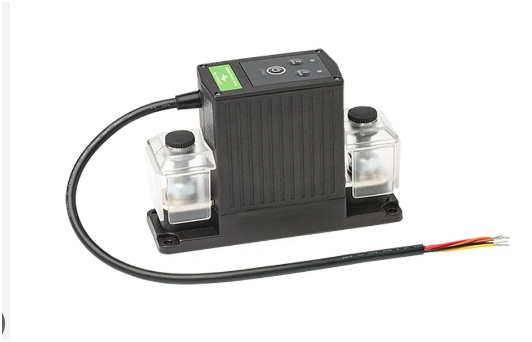

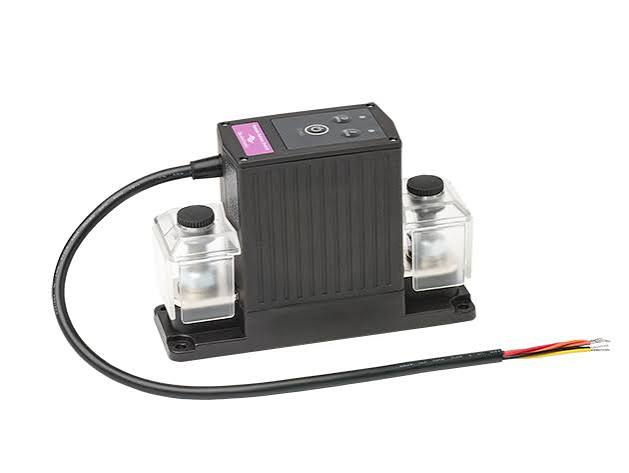

TBS Electronics 5074520 Remote Battery Switch (24V DC / 500A)

The TBS Electronics 5074520 is a heavy-duty 24V DC / 500A Remote Battery Switch (RBS) engineered for high-current DC power distribution systems in marine, commercial, and industrial applications. Utilizing an advanced bi-stable magnetic latching mechanism, the switch draws zero current in both the ON and OFF states, eliminating parasitic battery drain during extended standby periods and making it ideal for remotely isolating main battery banks, bow thrusters, windlasses, or large inverter systems.

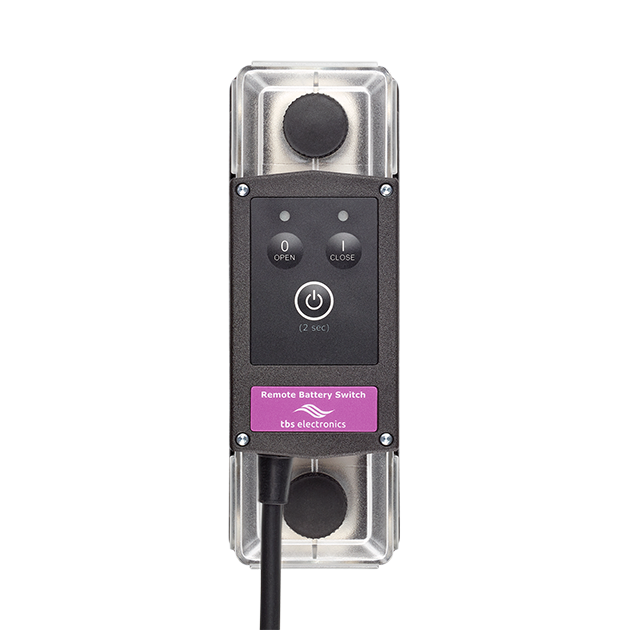

The 5074520 features manual override knobs on top of the unit for physical actuation during emergency isolation or maintenance, along with status output pins for remote LED indicators and digital switching networks. Its robust IP65-rated housing, heavy-gauge tin-plated copper busbars (M10 studs), and high peak surge capacity enable safe remote switching of extreme high-power loads directly at the battery source—reducing long runs of heavy gauge cable.

Key Features

• Bi-Stable Magnetic Latching: Zero current draw in both ON and OFF states—power is only consumed briefly during switching transitions (< 100 ms).

• Manual Override Control: Top-mounted physical knob allows direct manual switching and padlocking for maintenance safety or emergency shutdown.

• Massive 500A Continuous Capacity: Handles heavy battery isolation duties, high-output alternators, bow thruster banks, and large inverters.

• Remote Status Output: Integrated feedback pin powers remote dashboard LEDs or communicates switch position to digital monitoring systems.

• Ignition Protected (ISO 8846): Safe for installation in gasoline/diesel engine compartments and battery lockers.

Specifications
