SunWare - Solar Panel RX-Series RX 22052 100 Wp
SunWare - Solar Panel RX-Series RX 22052 100 Wp
Pre order
Regular price
$ 1,617.97 USD
Regular price
Sale price
$ 1,617.97 USD
Unit price
/
per
Description

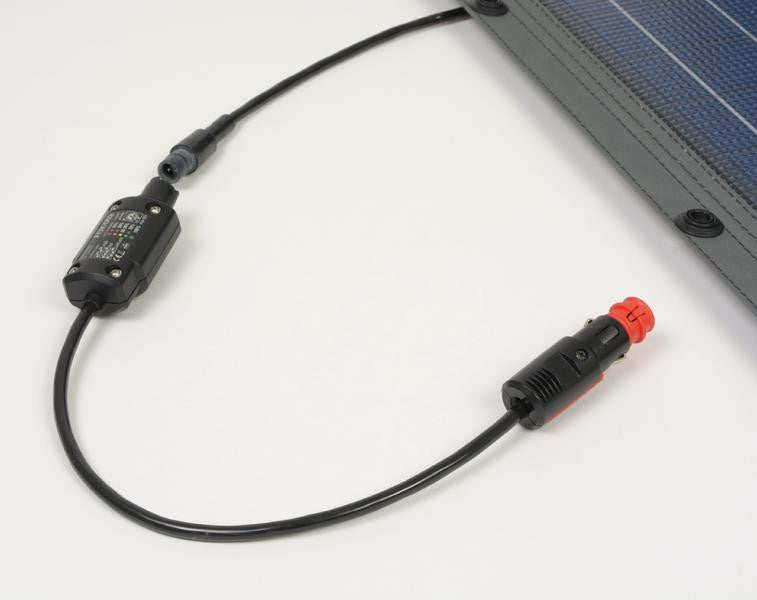

The compact RX-22052 solar module can easily be plugged into a 12V socket or cigarette lighter with the enclosed charge controller FOX-062. Just plug it in and recharge your battery.
5m cable attachted at the module. Your vehicle may be in the shadow and the module in full sun generate power effectively. If 5m are insufficient an extension cord can be plugged in between. 5m and 10m extension cords are available.

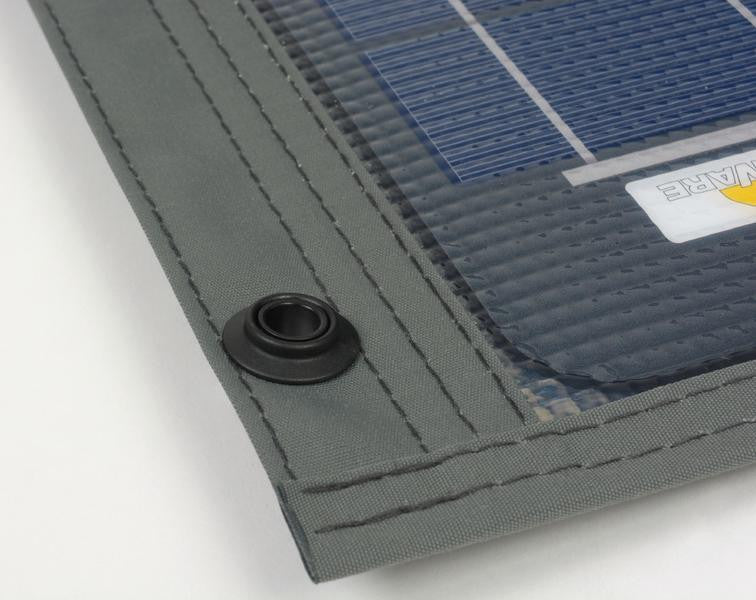

In the textile edge eyelets with 9mm inner diameter are integrated to allow nearly endless fixing possibilies.
FOX-062 charge regulator included!
By the foldable design, the module can be easily stored or carried on trips. The cells are supported by the a little bit flexible carrier plate made from aluminum sandwich to protect the cells against cell breakage.
Panel bag is in scope of delivery.
- 100.0 Wp Power
- 6.00 A max. charging current
- 24-30 Ah daily yield
- 1106.0 x 826.0 x 6.0 mm
- incl. regulator FOX-062
- panel bag included
Technical Data
Name | Value | Unit |
---|---|---|
Pmax | 100.0 | Wp |
Imax | 5.50 | A |
Umax | 18.18 | V |
Uoc | 22.8 | V |
Isc | 6.00 | A |
no. of cells | 72 | pcs. |
Cell sizes | 52.0 x 156.0 | mm |
Laminate | ETFE/EVA/ETFE | |
Length | 1106.0 | mm |
Width | 826.0 | mm |
Name | Value | Unit |
---|---|---|
Holes | 10 x 9.0 | mm |
Sys. Voltage | 12.0 | V |
back plate | 3.0mm Alu-Sandwich | |
Cable outlet | on frontside | |
Cable | 2 x 1.5 | mm² |
Cable length | 5.0 | m |
Color | dark grey | |
Package | Einzelkarton/sngl. box | |
Weight net | 5.1 | kg |
Weight gross | 8.8 | kg |
