SunWare - Solar Panel RX-Series RX 22039 76 Wp

SunWare - Solar Panel RX-Series RX 22039 76 Wp

Pre order

Regular price $ 1,355.76 USD
Regular price Sale price $ 1,355.76 USD
Sale Pre Order
Shipping calculated at checkout.

Description

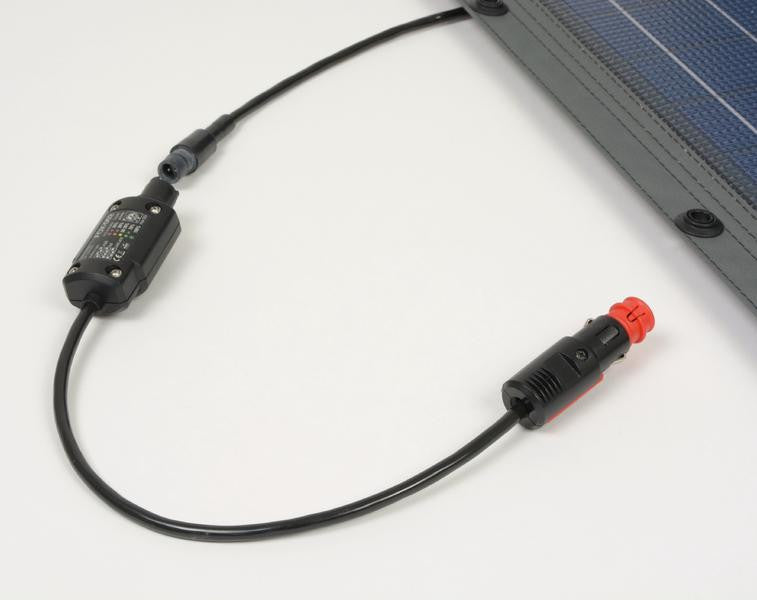

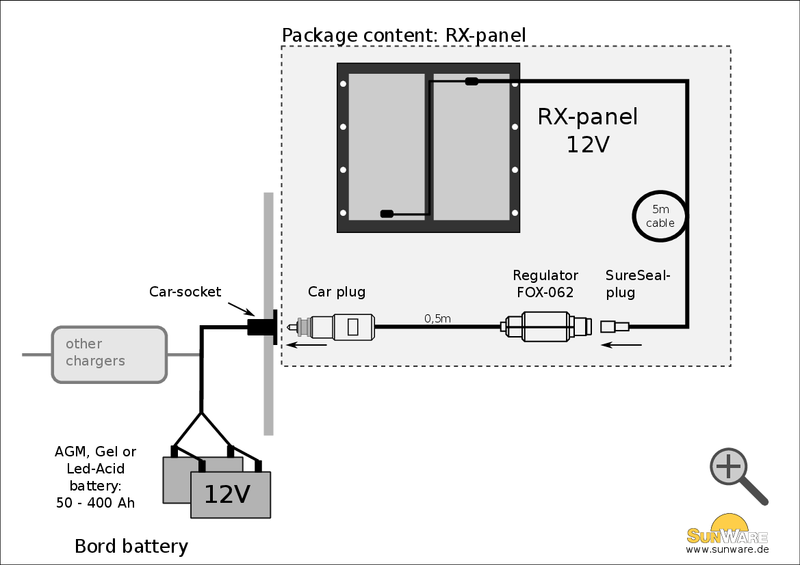

The RX-22039 solar module can easily be plugged into a 12V socket or cigarette lighter with the enclosed charge controller FOX-062. Just plug it in and recharge your battery.

5m cable attachted at the module. Your vehicle may be in the shadow and the module in full sun generate power effectively. If 5m are insufficient an extension cord can be plugged in between. 5m and 10m extension cords are available.

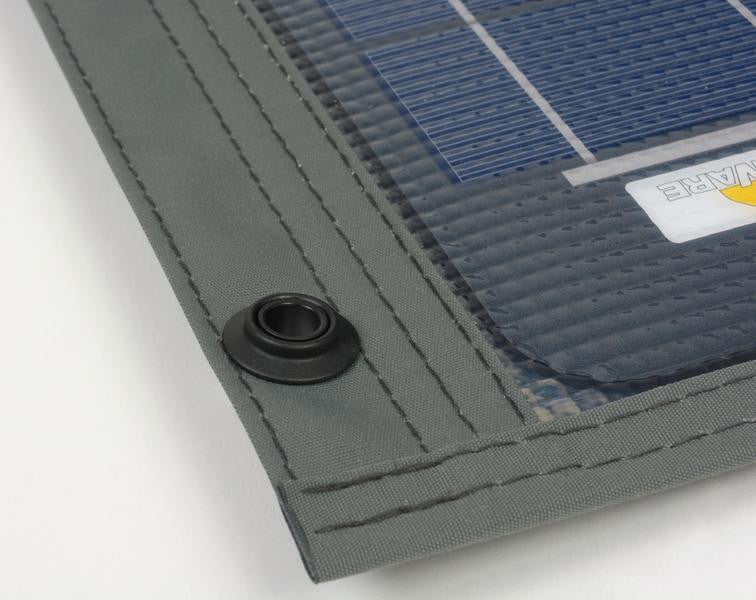

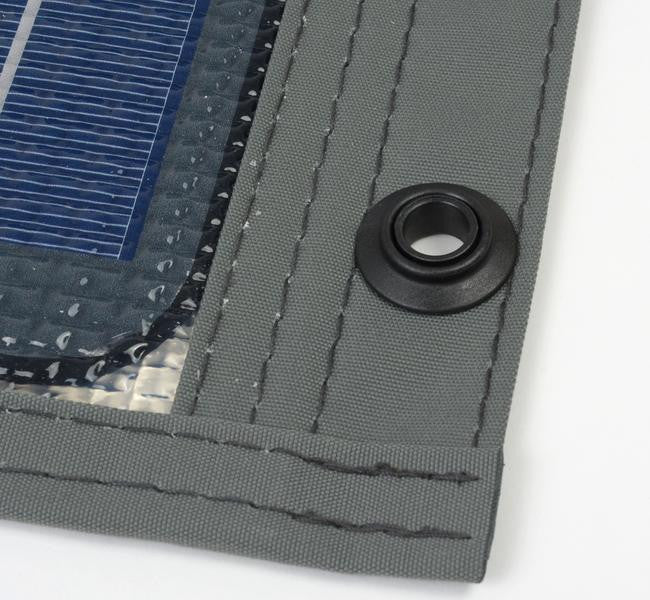

In the textile edge eyelets with 9mm inner diameter are integrated to allow nearly endless fixing possibilies.

FOX-062 charge regulator included!

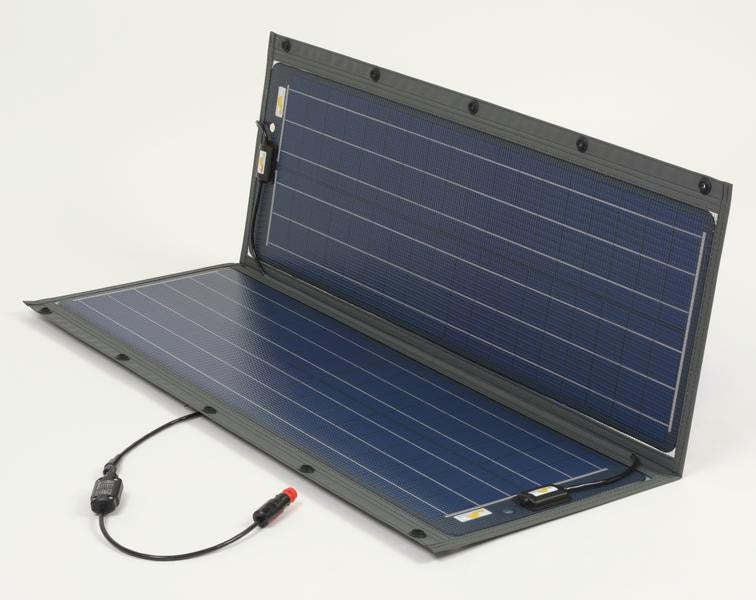

By the foldable design, the module can be easily stored or carried on trips. The cells are supported by the a little bit flexible carrier plate made from aluminum sandwich to protect the cells against cell breakage.

Panel bag is in scope of delivery.
  • 76.0 Wp Power
  • 4.40 A max. charging current
  • 18-22 Ah daily yield
  • 873.0 x 826.0 x 6.0 mm
  • incl. regulator FOX-062
  • panel bag included

Technical Data

Name Value Unit
Pmax 76.0 Wp
Imax 4.00 A
Umax 19.00 V
Uoc 22.8 V
Isc 4.40 A
no. of cells 72 pcs.
Cell sizes 39.0 x 104.0 mm
Laminate ETFE/EVA/ETFE
Length 873.0 mm
Width 826.0 mm
Name Value Unit
Holes 8 x 9.0 mm
Sys. Voltage 12.0 V
back plate 3.0mm Alu-Sandwich
Cable outlet on frontside
Cable 2 x 1.5 mm²
Cable length 5.0 m
Color dark grey
Package Einzelkarton/sngl. box
Weight net 4.2 kg
Weight gross 7.2 kg
