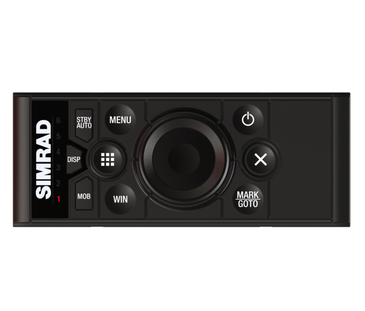

SIMRAD OP50 wired Remote controller. (Landscape mount) For use with Simrad NSS and NSO evo2 MFD systems and brings simple and precise MFD control in even the roughest sea conditions. Comes with Molded 1.8 m (6 ft) cable with Micro-C connector and Micro-C T joiner. 000-12512-001

Description

The OP50 remote controller has been designed for use with Simrad NSS and NSO evo2 MFD systems and brings simple and precise MFD control in even the roughest sea conditions. OP50 has been designed for many mounting configurations and has a solution for every install

• Helm chair arm mount
• Dash mount
• Landscape dash mount
• Flush mount

Key Features

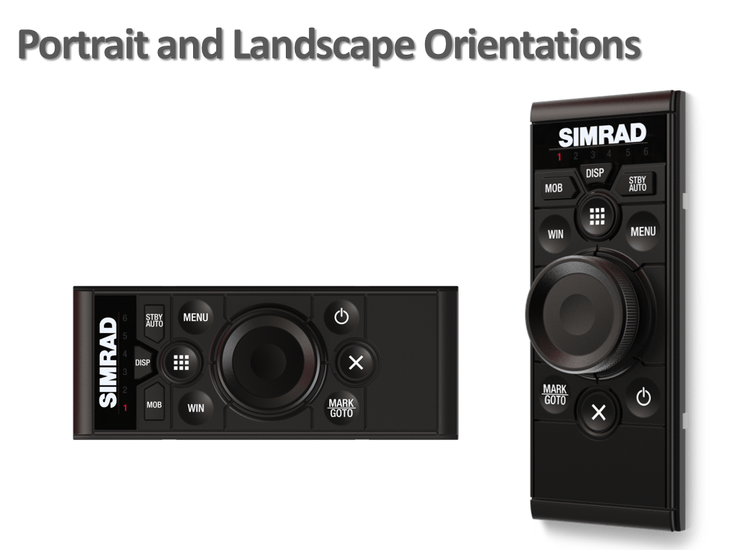

Portrait & Landscape orientation options (Portrait version part number 000-12364-001)

Mounting options

• Dash mount with 8 mm (0.32") profile
• Narrow width enables easy chair arm mounting

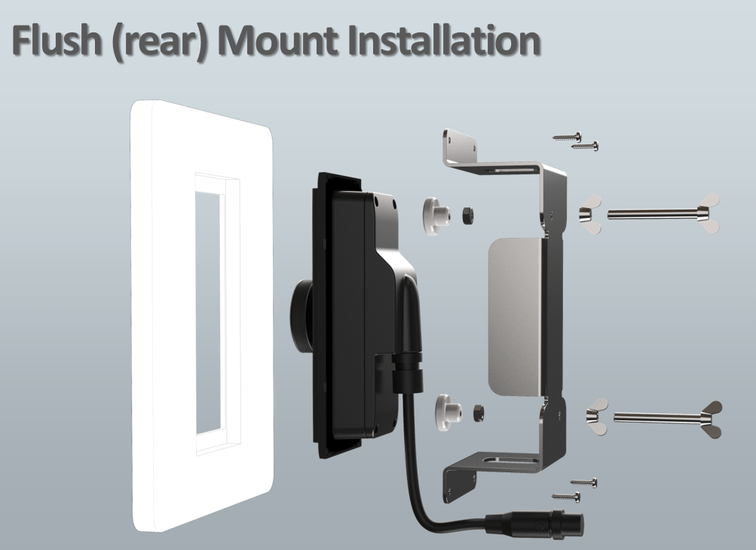

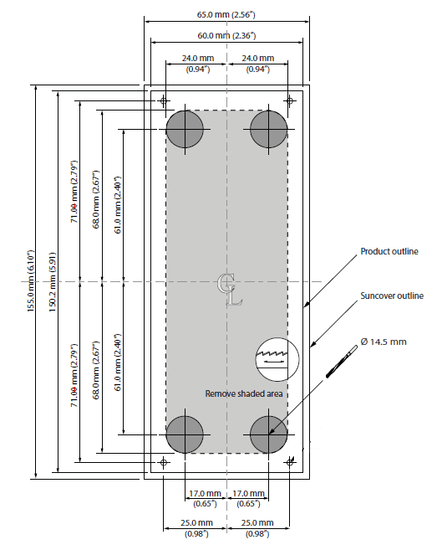

• Total flush mount (requires bracket)

• Control up to 6 MFD displays

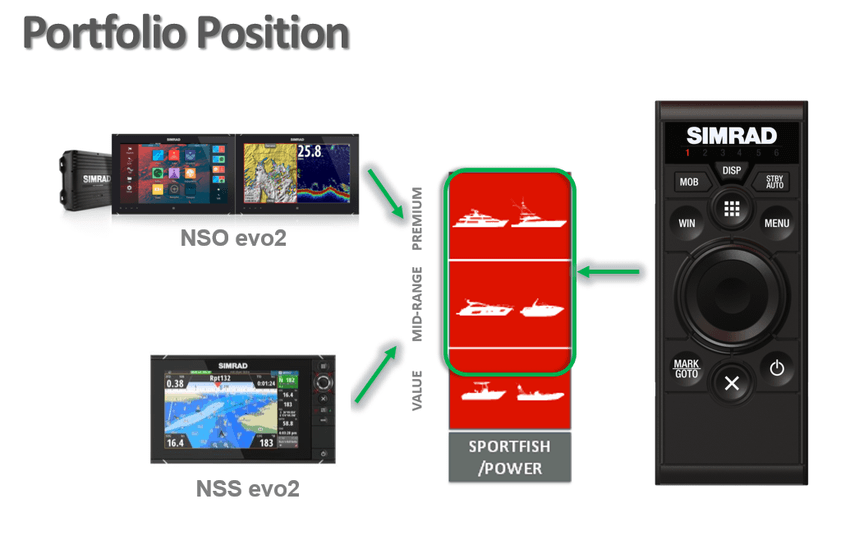

• Functions with NSS evo2 all sizes, NSO evo2
• GO7
• Keypad configuration is optimized for Simrad HEROiC software control
• Aluminium control dial with build in cursor functions
• High volume alarm output for critical notifications
• Single NMEA2000 connection

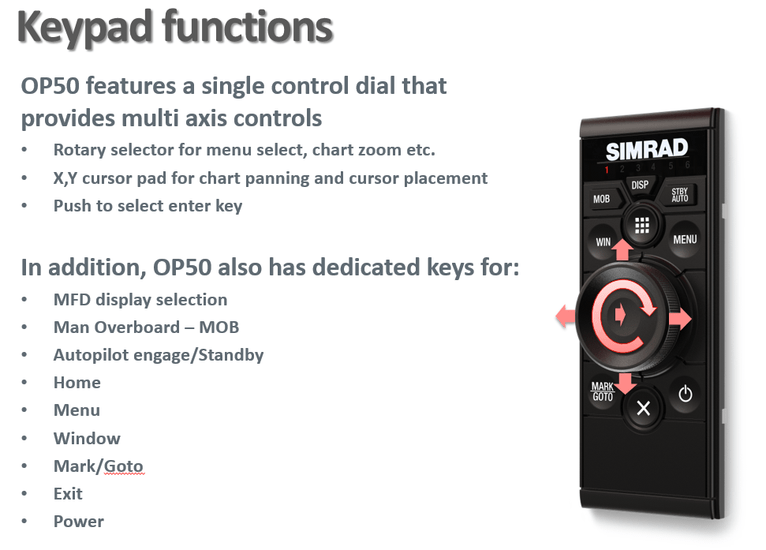

OP50 features a single control dial that provides multi axis controls Rotary selector for menu select, chart zoom etc. X,Y cursor pad for chart panning and cursor placement Push to select enter key

In addition, OP50 also has dedicated keys for:

• MFD display selection
• Man Overboard – MOB
• Autopilot engage/Standby
• Home
• Menu
• Window
• Mark/Goto
• Exit
• Power

Molded 1.8 m (6 ft) cable with Micro-C connector

	000-0119-79	N2K-T-RD T N2K-T-RD - Micro-C T-connector for connection of an additional network device
	000-12743-001	OP50/ZC2 SUNCOVER OP50/ZC2 SUNCOVER
	000-12744-001	OP50/ZC2 DASH KIT (GASKET BEZEL SCREW) OP50/ZC2 DASH KIT (GASKET BEZEL SCREW)
