Simrad NSO evo3S 16" MFD Display 000-15047-001 Specs

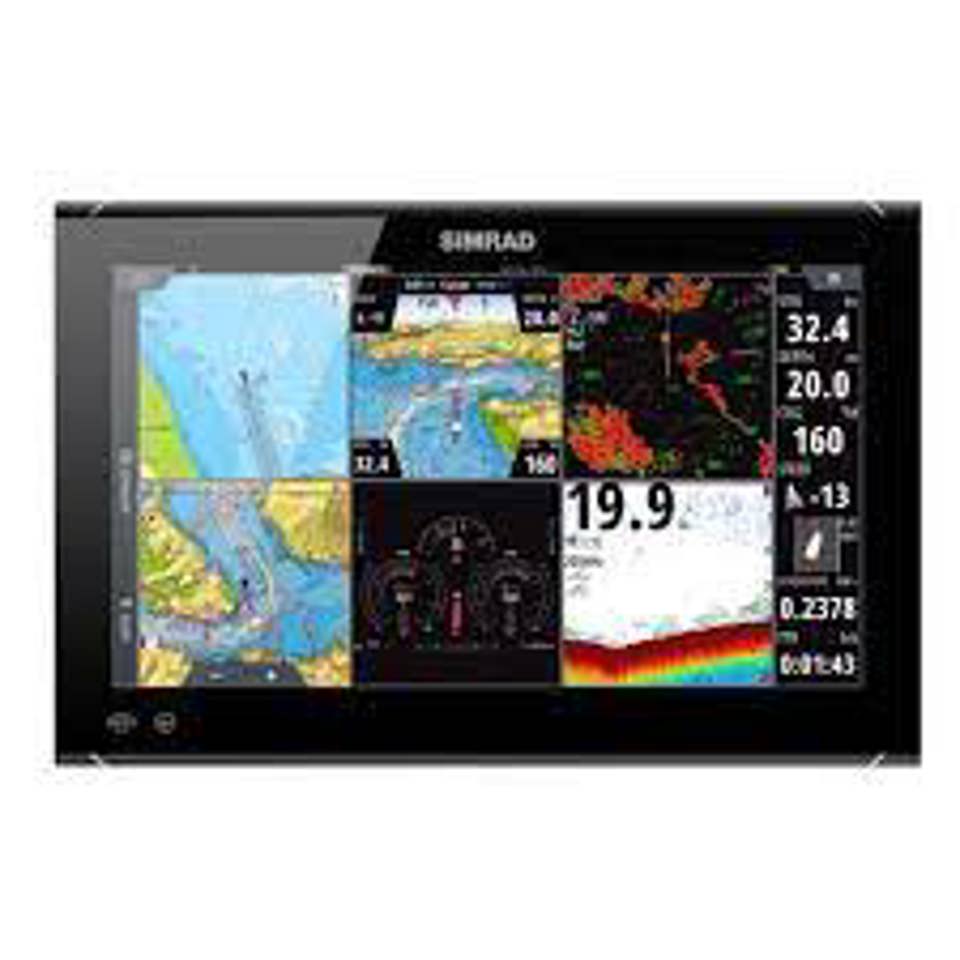

Simrad NSO evo3S MFD 16"

The Simrad NSO evo3S 16" (Part Number: 000-15047-001) is a premium, flagship 16-inch glass bridge multifunction display (MFD) engineered for luxury yachts, offshore sportfishing vessels, and commercial marine installations. Powered by the high-performance i.MX8 six-core processor, the NSO evo3S delivers fast page transitions, instant chart redraws, and smooth multi-screen split layouts (up to 6 split-screen panels).

Featuring a Full HD 1920 * 108 SolarMAX™ IPS display, it offers ultra-wide viewing angles (80° top/bottom/left/right) and high-brightness clarity usable in direct sunlight with polarized sunglasses. The display integrates seamlessly into low-profile glass dashboards, offering touch-screen control alongside support for external Simrad OP50 physical controllers. It acts as the central nerve center for halo radar systems, S5100 sonar modules, autopilot, IP camera video feeds, and C-Zone digital switching.

Key Features

• i.MX8 Six-Core High-Speed Processor: Delivers category-leading processing power for split-screen multitasking, instant panning, and chart zooming.

• Full HD SolarMAX™ IPS Display: 1200-nit high-brightness screen provides crystal-clear visibility from extreme viewing angles, even in direct sunlight.

• 6-Way Split Screen Capability: High-resolution graphics allow simultaneous monitoring of chartplotter, radar, dual CHIRP sonar, IP cameras, and instrument gauges.

• Extensive Video Connectivity: Includes HDMI input and output ports to mirror display screens to secondary monitors or integrate external camera entertainment systems.

• Dual Ethernet & NMEA 2000 Networking: Dual $100\text{ Mbit}$ Ethernet ports enable high-speed data routing across multiple helm stations without external switch bottlenecks.
