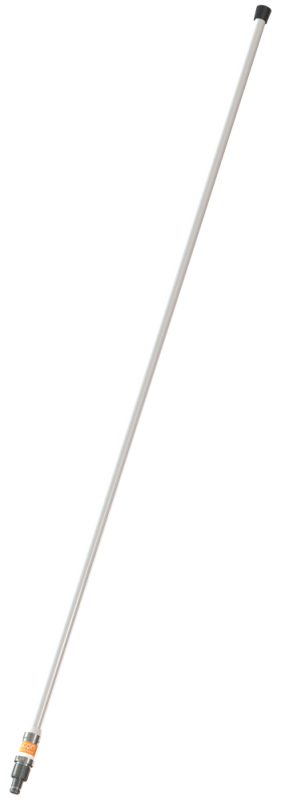

Scan-Antenna 14086-431 LTE800WB Marine LTE Antenna 6dB

Scan-Antenna LTE800WB Marine LTE Cellular Antenna Kit

The Scan-Antenna 14086-431 (Model: LTE800WB) is a high-performance, heavy-duty wideband marine cellular antenna specifically optimized for long-range offshore 4G LTE and 3G communications across the low-band cellular spectrum (790 to 960 MHz). Engineered for commercial vessels, superyachts, offshore platforms, and coastal craft, it delivers a high nominal gain of 6 dB (Marine) (3 dBd / 5.1 dBi) to boost weak signals from distant shore-based cellular towers.

Enclosed in a rugged fiberglass radome built to withstand extreme gale-force winds, saltwater spray, and severe UV radiation, this antenna provides an omnidirectional radiation pattern focused along the horizon. This specific kit variant (14086-431) is pre-packaged in a protective polybag with Scan-Antenna’s heavy-duty 1" revolving nut adapter (1''-11 BSP / G1'' standard), enabling direct mounting to standard European marine antenna brackets, deck flanges, and mast mounts.

Key Features

• High-Gain Low-Band Cellular Performance: 6 dB gain profile focuses energy toward shore towers, significantly extending 4G/LTE connectivity ranges offshore.

• Included 1" Revolving Nut: Features an integrated 1''-11 BSP (G1'') threaded mounting nut for direct attachment to standard marine mounts and deck flanges.

• Heavy-Duty Fiberglass Radome: Rigid fiberglass housing provides complete internal protection against harsh marine salt air, ice loading, and UV degradation.

• Omnidirectional Horizontal Coverage: 360° radiation pattern ensures continuous signal lock regardless of vessel heading or pitch-and-roll movement.

Specifications
