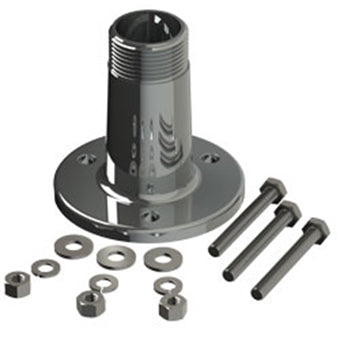

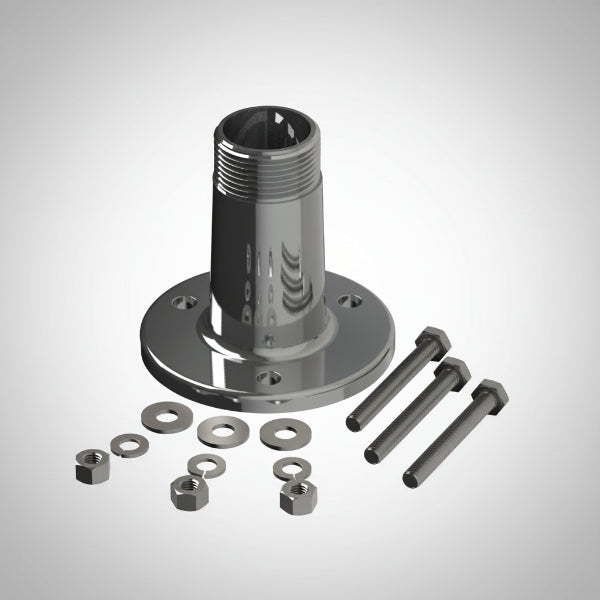

Scan-Antenna 10003-003 Heavy Duty SS Deck Mount G1"-11

Scan-Antenna Heavy-Duty SS Deck Mount G1"-11

The Scan-Antenna 10003-003 (Item Code: 10003-003) is an elite, commercial-grade heavy-duty deck mount flange manufactured from high-grade electropolished 316 stainless steel. Designed for high-stress marine installations on commercial vessels, superyachts, offshore rigs, and workboats, this mount provides an extremely rigid foundation for heavy marine VHF, HF/SSB, AIS, cellular, and satellite antennas.

Featuring a standard European 1''-11 BSP (G1" female-to-male pipe thread stud), it directly accepts Scan-Antenna models and standard ISO marine antenna bases. The wide four-hole base plate distributes severe mechanical forces caused by heavy wind loads, high-speed vessel vibration, and pitch-and-roll movements. It includes a hollow center bore for clean, direct-through-deck coaxial cable pass-through.

Key Features

• 316 Marine-Grade Stainless Steel: Cast and electropolished to provide maximum resistance to pitting and crevice corrosion in harsh saltwater marine environments.

• Heavy-Duty 3-Hole Base Flange: Broad footprint ensures maximum shear strength and load distribution for long, top-heavy antenna whips.

• Internal Cable Feed-Through: Hollow center bore allows coaxial cables (RG-58, RG-213, LMR-400) to pass straight through the deck for a waterproof below-deck termination.

• Standard G1"-11 Threading: Native 1''-11 BSP male threaded stud compatible with European marine antennas or thread adapters (e.g., Scan-Antenna 10000-460 for US 1''-14 UNS conversion).

Specifications
