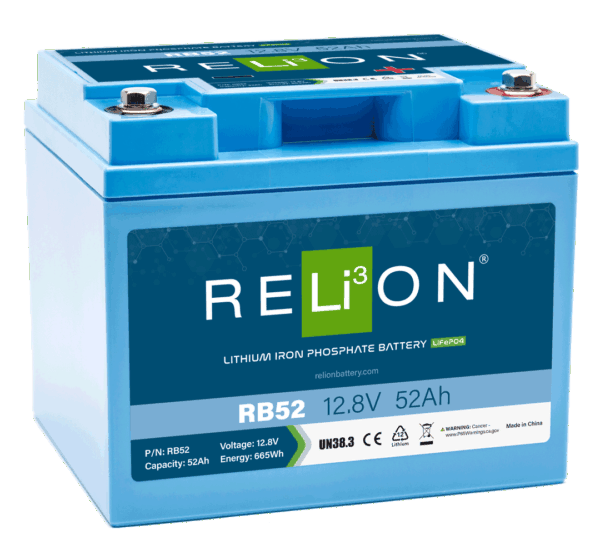

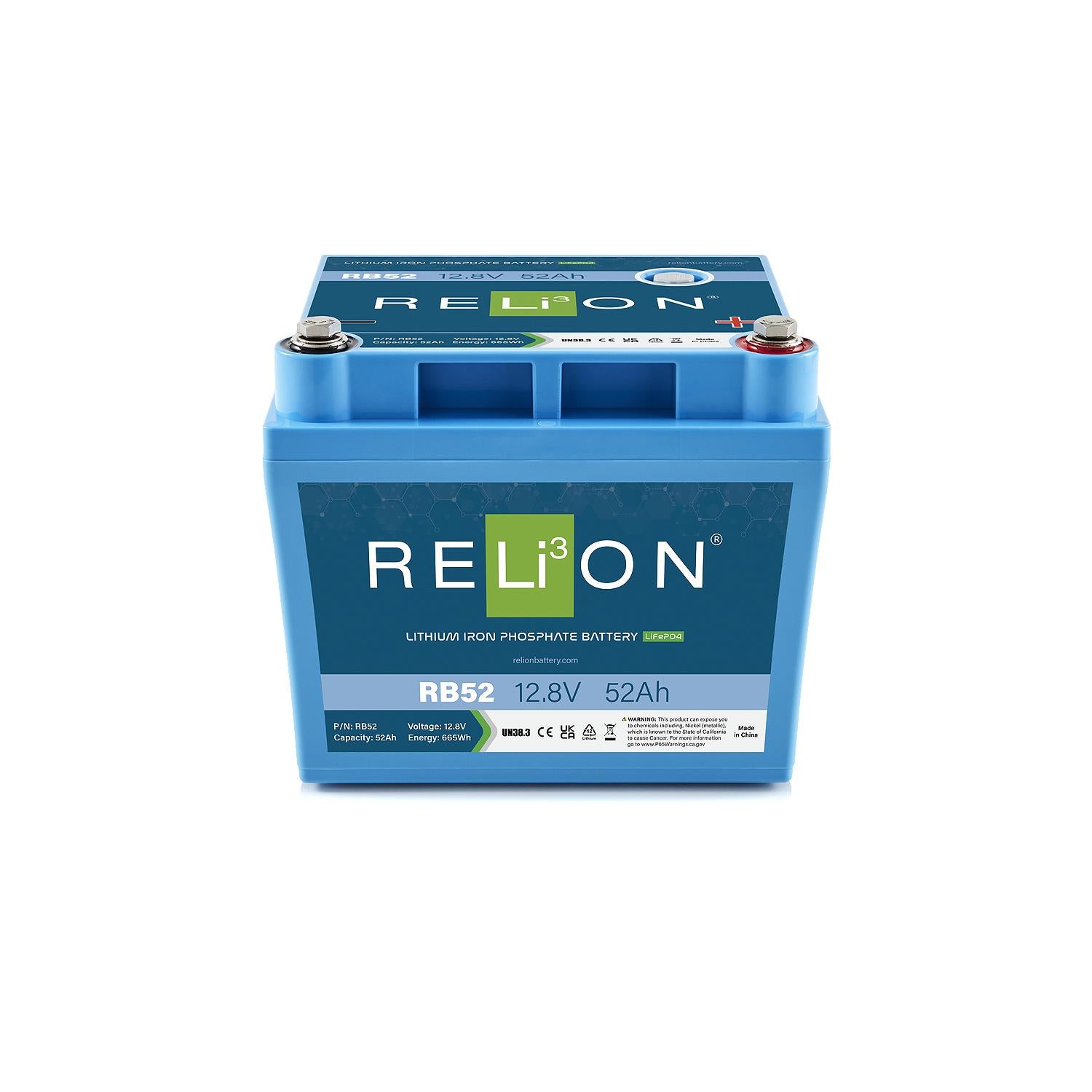

RELiON - RB52 - 12V 52Ah Lithium Deep Cycle Battery
RELiON - RB52 - 12V 52Ah Lithium Deep Cycle Battery
Low stock: 2 left
Couldn't load pickup availability
RB52
12V 52Ah Lithium Deep Cycle Battery
The RB52 is a 12V 52Ah lithium marine deep cycle battery. The RB52 offers abundant power in a small footprint. It’s versatile and compact enough to be used in many marine applications including smaller boats with lower battery requirements, boats that require two of the same batteries and boats with electrical systems designed for just one battery.
The RB52 is a lithium iron phosphate (LiFePO4) battery with more power, less weight and up to 10x longer life than its lead-acid counterparts. Lithium is the logical choice for marine applications where you need a longer run time and reliability. RELiON lithium batteries provide more energy for high consumption than traditional lead-acid batteries. Lead-acid batteries also need to be maintained. If they are not maintained properly, their life span is shortened. Because lithium batteries require no active maintenance, a one-time purchase guarantees better lifetime value.
PRODUCT SPECIFICATIONS
- Voltage: 12.8V
- Amp Hours: 52Ah
DIMENSIONS & WEIGHT
- Length: 7.8 in (197 mm)
- Width: 6.5 in (166 mm)
- Height: 6.8 in (173 mm)
- Weight: 13.7 lbs (6.2 kg)
APPLICATIONS
- AWP
- Floor Machines
- Marine
- Recreational Vehicles
- Solar
- Camping
DATA SHEET
DOWNLOAD PDF|
ELECTRICAL SPECIFICATIONS |
|
|---|---|
| Nominal Voltage | 12.8 V |
| Nominal Capacity | 52 Ah |
| Capacity @ 25A | 120 min |
| Energy | 640 Wh |
| Resistance | ≤50 mΩ @ 50% SOC |
| Efficiency | 99% |
| Self Discharge | <3% per Month |
| Maximum Batteries Connected in Series | 4 |
|
MECHANICAL SPECIFICATIONS |
|
|---|---|
| Dimensions (L x W x H) | 7.8 x 6.5 x 6.8” (197 x 166 x 173 mm) |
| Weight | 13.7 lbs (6.2 kg) |
| Terminal Type | M8 x 1.25 |
| Terminal Torque | 80 - 100 in-lbs (9 - 11 N-m) |
| Case Material | ABS |
| Enclosure Protection (Waterproof Rating) | IP66 |
| Cell Type - Chemistry | Cylindrical - LiFePO4 |
|
DISCHARGE SPECIFICATIONS |
|
|---|---|
| Maximum Continuous Discharge Current | 52 A |
| Peak Discharge Current | 100 A (7.5 s ±2.5 s) |
| Discharge Over-Current Protection | 170 A ±20 A (10 ±5 ms) |
| Recommended Low Voltage Disconnect | 11.0 V |
| Discharge Under-Voltage Protection | 9.3 V (2.325 ±0.08 vpc) (140 ±60 ms) |
| Reconnect Voltage | 10.5 V (2.625 ±0.1 vpc) |
| Short Circuit Protection Response Time | About 100μs |
|
CHARGE SPECIFICATIONS |
|
|---|---|
| Recommended Charge Current | 2.5 A - 25 A |
| Maximum Continuous Charge Current | 52 A |
| Charge Current 32º to 14ºF (0 to -10 ºC) | ≤0.1 C (10 A) |
| Charge Current -4º to 14ºF (-20 to -10 ºC) | ≤0.05 C (5 A) |
| Recommended Charge Voltage | 14.2 V - 14.6 V |
| BMS Charge Voltage Cut-Off | 15.4 V (3.85 ±0.025 vpc) (1.1 ±0.4 s) |
| Reconnect Voltage | 14.5 V (3.62 ±0.05 vpc) |
| Balancing Voltage | 14.4 V (3.6 ±0.025 vpc) |
|
TEMPERATURE SPECIFICATIONS |
|
|---|---|
| Discharge Temperature | -4 to 140 ºF (-20 to 60 ºC) |
| Charge Temperature* | -4 to 113 ºF (-20 to 45 ºC) |
| Storage Temperature | 23 to 95 ºF (-5 to 35 ºC) |
| BMS High Temperature Cut-Off | 176 ºF (80 ºC) |
| Reconnect Temperature | 122 ºF (50 ºC) |
| *Refer to charge currents below 0°C (32°F) | |
|
COMPLIANCE SPECIFICATIONS |
|
|---|---|
| Certifications | UKCA & CE (battery) |
| UN38.3 (battery) | |
| UL1642 (cells) (File# MH64523) | |
| IEC62133 (cells) | |
| Shipping Classification | UN 3480, CLASS 9 |
