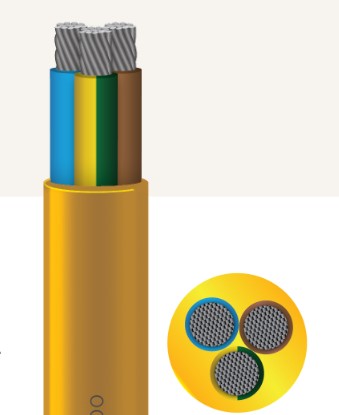

Octeve ES-3C6-TXP-E3YE 6mm² Yellow Shore Power Cable

Octeve ES Series 3-Core 6mm² Heavy-Duty Yellow Shore Power Cable

The Octeve ES-3C6-TXP-E3YE is a high-visibility, 3-core 6mm² heavy-duty flexible shore power cable engineered for dockside AC electrical hookups, marina power pedestals, ship-to-shore power connections, and onboard generator feeds. Rated at 0.6/1kV, its 6mm² cross-sectional conductor area is designed to deliver sustained 32A continuous AC loads with minimal voltage drop across extended marina dock runs.

Constructed with Class 5 fine-stranded Tinned Annealed Copper Wire (TACW) conductors, the cable resists inter-strand oxidation, flexing fatigue, and galvanic corrosion caused by damp salt-air environments. It features Cross-Linked Polyethylene (XLPE/TXP) insulation for high thermal performance and a rugged, flame-retardant, bright yellow polymer outer jacket designed for max visibility on docks, high abrasion resistance, and long-term protection against UV radiation, oil, and sea water.

Key Features

• High-Visibility Safety Sheath: Bright yellow outer jacket increases dockside visibility to prevent trip hazards and accidental mechanical damage.

• Tinned Stranded Conductors: Fine-stranded Class 5 tinned copper provides high flexibility for frequent coiling/uncoiling while preventing marine corrosion.

• XLPE High-Temp Insulation: Delivers superior thermal stability, high current-carrying capacity, and moisture resistance up to +90°C continuous conductor temperature.

• 32A AC Continuous Load Capable: Optimized for standard 32A 230V AC single-phase marina shore power connections.

• Weather & Chemical Resistant: Built to endure harsh outdoor marina conditions, direct sunlight (UV), seawater immersion, oil splashes, and foot/equipment traffic.
