OceanLED X8 Ultra White 012304W | Midnight Blue 012305B | Colours | 012307C

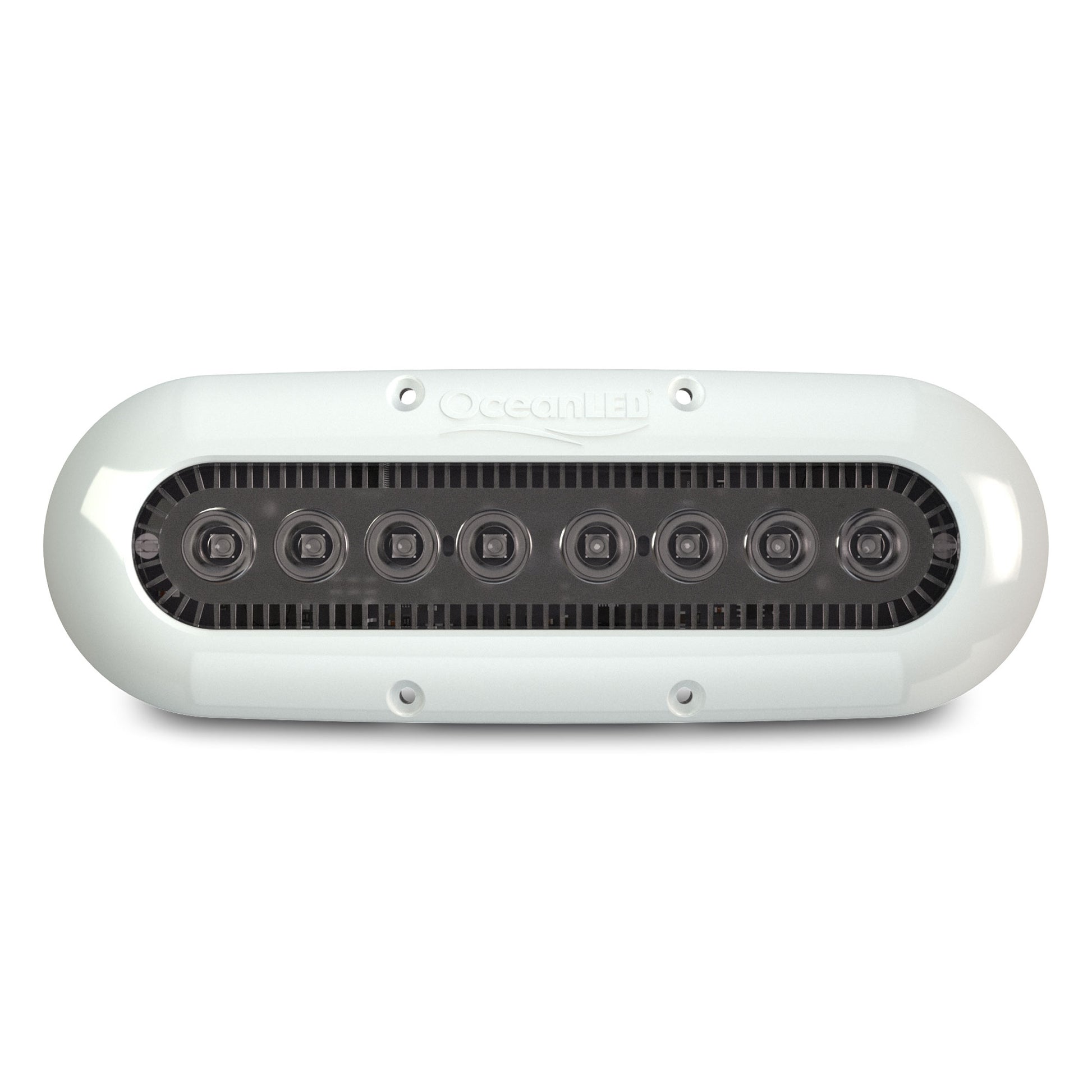

OceanLED X-Series are the only underwater LED lights for small to medium fishing and leisure boats.
2,900 LUMENS / 2,300 FIXTURE LUMENS
Outstanding performance from this small, bright light makes it the obvious choice for those who want to stand out from the crowd.
ABOVE WATER MOUNTING
The X Series can also be used as an exterior light for your cockpit, deck or trailer..
COMPACT AND SIMPLE DESIGN
Made from a chemically resistant optical polymer with a built in driver, there is a lot packed into this compact light.
SIMPLE TO INSTALL
Installation needs only a small, 12.5mm hole in the hull to feed the cable through and 4 screws to hold in place. No bonding required.
EASY TO CLEAN
Thanks to its Tritonium coating, a simple wipe of the lens removes any underwater growth, saving hours of scrubbing each time you use your boat.
FISH-STROBE MODE
Exceptionally bright, randomised strobing of the light is proven to attract more fish and catch more bait.
ACTIVE THERMAL CONTROL
ATC prevents overheating. In the event of overheating the ATC system will reduce the LED power level in order to protect the LEDs, or in extreme cases, turn off the fixture completely.
COLOURS CONTROL
Colours models are compatible with OceanDMX for full control, interactivity and colour customisation. Alternatively, cycle smoothly between red, green, blue and white with a standard DC switch.
FEATURES
60° Top Beam Angle
Up to 2300 Fixture Lumens
60° Side Beam Angle
Circular Beam
- Compact and simple design
- Simple to install
- Easy to clean
- Fish-Strobe Mode
- Active Thermal Control
COLOURS AVAILABLE
- Midnight Blue
- Ultra White
- Multi-Colour
BOX CONTENTS
X-Series LED Light and Cable
In-line Fuse Kit
Mounting Screws
Quick Install Guide
Technical
| Lumens | 2900 |
| Fixture Lumens | 2300 |
| Typical LED life expectancy | 40,000+ Hours |
| Minimum-Maximum operating voltage DC | 9-32V DC |
| Current / Amp draw (DC) (Amperage draw for Colours models vary by colour selected, this is the maximum) | 12V DC 1.65A 24V DC 0.75A |
| Approx. light penetration (avg. water quality) | 26’ (8m) |
| Approx. Light penetration (perfect water quality) | up to 72’ (21+m) |
| Driver type | Internal |
Mounting Recommendations
| Boat size | up to 50’ (15m) |
| Transom / Hull spacing | 2-4’ (0.5-1.2m) |
| Transom quantity | 2-4 |
| Installation depth (to top of fixture) | 4-8” (10-20cm) |
Physical
| Total weight | 600g (1.32lbs) |
| Extension cable length (standard) | 9.84" (3m) |
| Hole cut-out for cable entry | 0.5" (12.5mm) |
| Material | Chemically resistant optical polymer |
Accessories
| Xtreme Series OceanDMX App Controller Kit (1-4 Lights) | 011704 |
| DMX Junction Box (Required for 5+ OceanDMX Controlled Lights) | 011702 |
| 316L Stainless Steel Bezel X8 | 011417 |
| 4 Way V DC Power Junction Box | 019901 |
