Mastervolt

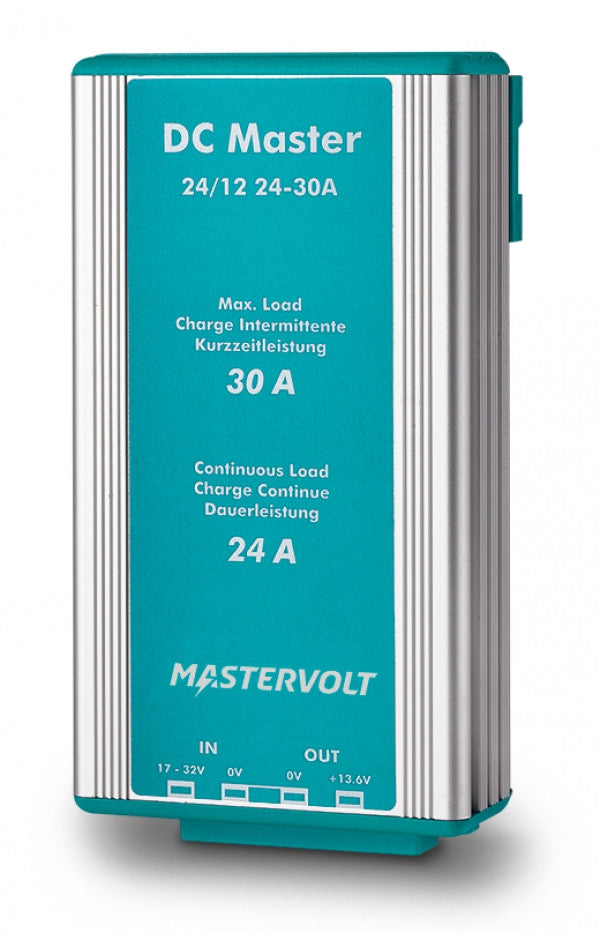

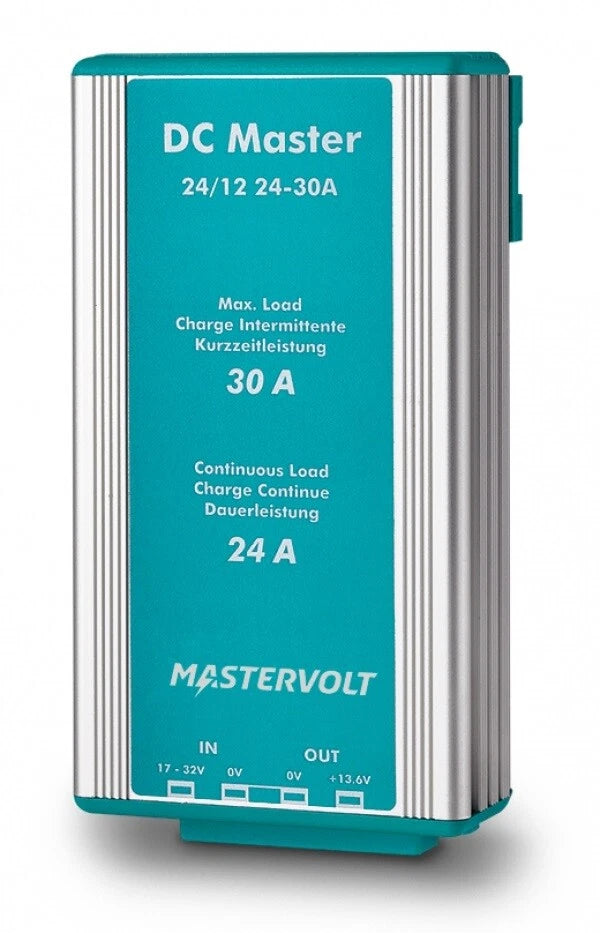

Mastervolt-81400330-DC Master 24/12-24A

Mastervolt-81400330-DC Master 24/12-24A

Low stock: 4 left

Regular price $ 267.27 USD
Regular price Sale price $ 267.27 USD
Sale Pre Order
Shipping calculated at checkout.

DC Master 24/12-24A



Power you can rely on

The required voltage for DC current can vary. Some equipment requires 24 V, while onboard equipment usually requires 12 V. For custom DC current, Mastervolt offers a series of compact and made to measure DC-DC converters for both 12 V and 24 V battery systems that offer stable power with the right current for any connected consumer. There is a wide range of DC Master converters available, including insulated and non-insulated models.

Benefits

  • Recreational and semi-professional use.
  • Easy to install using included mounting bracket, screws and fasteners.
  • Smart electronics mean no unnecessary heat generation.
  • Continuous output.
  • Insulated and non-insulated models available.
  • Two minutes of extra power for short power boosts.
  • Excellent price/performance ratio.

Intelligent DC-DC converters

A large benefit of the DC Master models is their two minutes of extra capacity; ideal if you need a short power boost.

Complete package DC Master

All DC Master converters are delivered with mounting bracket, screws and fasteners.

Product code: 81400330
download pdf

Specifications

General specifications
Nominal output voltage 13.6 V
Max. output power 408 W
Nominal output power 326 W
Max. output current (for 2 min. intervals) 30 A
Continuous output current 24 A
Nominal input voltage 24 V
Input voltage range 20-32 V
Galvanic isolation no
Stabilised yes
Dimensions, hxwxd 167 x 87 x 50 mm
6.6 x 3.4 x 2.0 inch
Weight 0.635 kg
1.4 lb
Approvals CE, E-mark

Technical specifications
DC consumption < 10 mA
Connections fast-on
Temperature range (ambient temp.) -25 °C to 80 °C, derating > 30 °C
-13 °F to 176 °F
Sound level < 30 dBA at 1 mtr
Protection degree IP53
Cooling natural cooling
