Mastervolt

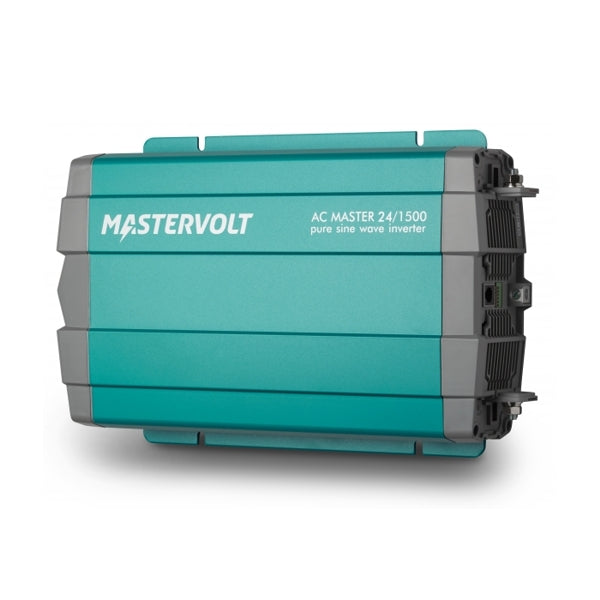

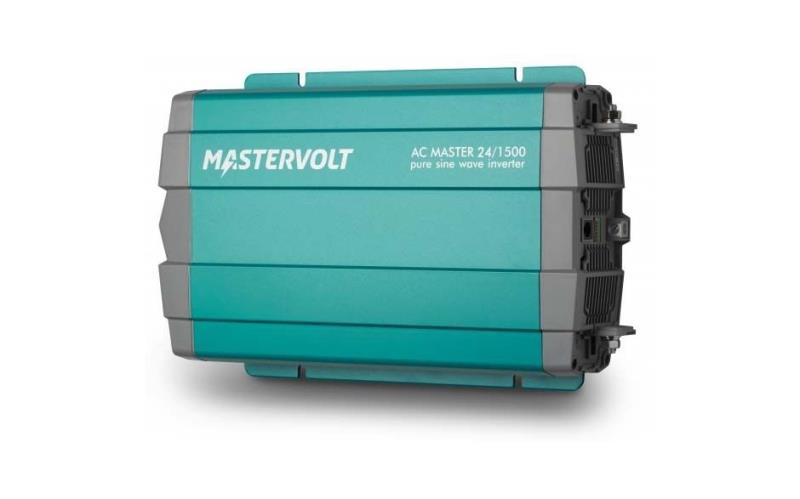

Mastervolt - 28221500 - AC Master 24/1500 (UK outlet)

Mastervolt - 28221500 - AC Master 24/1500 (UK outlet)

Low stock: 1 left

$ 948.67 USD
$ 918.36 USD $ 948.67 USD
Sale Pre Order
Shipping calculated at checkout.

Mastervolt AC Master 24v/1500w Inverter With UK Outlet

Reliable AC power for recreational and semi-professional use

These affordable sine wave inverters convert 12 or 24 V battery voltage into reliable 230 V 50/60 Hz or 120 V 50/60 Hz grid power, making them ideal for recreational and semi-professional applications. The AC Master series is easy to install and delivers full output, even under the most demanding conditions. The pure sine wave technology provides an outstanding power quality, ensuring the correct functioning of sensitive equipment. The usage of high frequency switching technology eliminates any annoying humming and buzzing sounds.

Representing complete value for money, these ruggedly built inverters provide essential home comforts when you’re far from the nearest grid connection.

Features

  • Pure sine wave technology protects sensitive equipment.
  • Delivers full output at high peak power under the most demanding conditions.
  • Automatic power saving system for extended runtime.
  • Compact and lightweight design, saving valuable installation time.
  • Reliable and safe operation; protected against over-temperature, overload, short circuit, high or low battery voltage.
  • Variable speed fan for quiet operation at low power.
  • Optional remote control for instant switch off of the inverter and all connected equipment (not available for the 300 and 500 W models).
  • Convenient plug connection for all models, 2500/3500 Watt models also hard wired.


In addition, the 2500/3500 Watt models offer:

  • Combine 2 up to 15 units to obtain high power or 3-phase systems.
  • Integrated transfer system, switches automatically between AC power sources.

Applications

Both recreational and semi-professional use, where grid power varies or is unavailable. Applications include lighting, appliances, electric cooking and power tools. For (mobile) applications in your home, office or service vehicle, or during your holidays.

Specifications:

General specifications
Output voltage 200/220/230/240 V – 50/60 Hz (selectable)
Output waveform true sine
Nominal battery voltage 24 V
Recommended battery capacity ≥ 80 Ah
Continuous power at 25 °C / 77 °F, cos phi 1 1500 W
Continuous power at 40 °C / 104 °F, cos phi 1 1500 W
Peak load (1 min.) < 1730 W
Peak load (1 s) < 2650 W
AC connection plug connection EU (Schuko), with UK plug (code 28221500) or with NZ/AU plug (code 28421500)
Efficiency 94 %
Display/read-out LED indication: battery voltage, load level, status
Alarms potential free alarm contact
Dimensions, hxwxd 248 x 421 x 83 mm
9.8 x 16.6 x 3.3 inch
Weight 4.2 kg
9.3 lb
Approvals CE, E-mark, RCM

Technical specifications
Technology high frequency, input & output fully isolated
Low battery voltage, switches off at 21 V
Low battery voltage, switches on at 25 V
High battery voltage, switches off at 33 V
High battery voltage, switches on at 29 V
Input current (nominal load) 75 A
No-load power consumption (ON mode) < 0.9 A
No-load power consumption (energy saving mode) < 0.05 A
Minimal DC fuse (slow blow) 100 A
Minimal cable size 25 mm²
Harmonic distortion typical < 5 %
Cos phi all power factors allowed
Temperature range (ambient temp.) -20 °C to 60 °C, derating power > 40 °C
-4 °F to 140 °F
Cooling temperature and load controlled fan
Protection degree IP21, horizontal wall mounting
Protections over-temperature, overload, short circuit, high/low voltage, reverse polarity (fuse)
MasterBus compatible yes, using a MasterBus AC Master Interface
