Fusion Entertainment

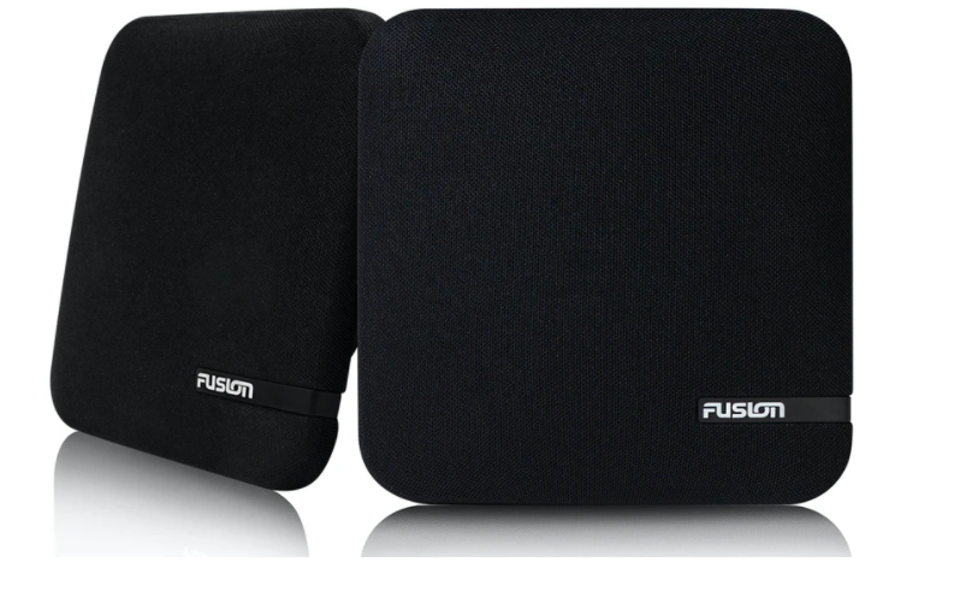

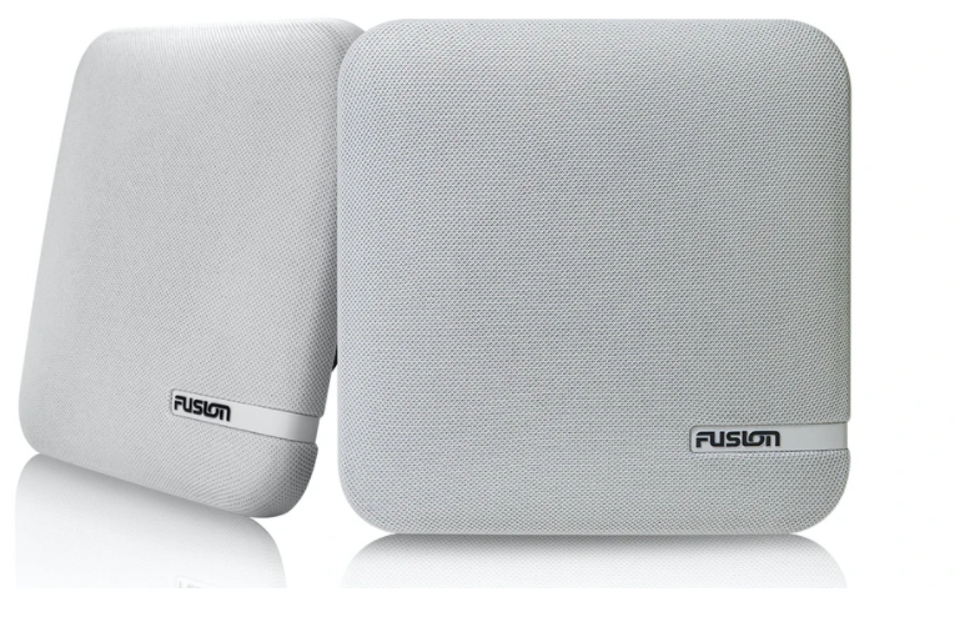

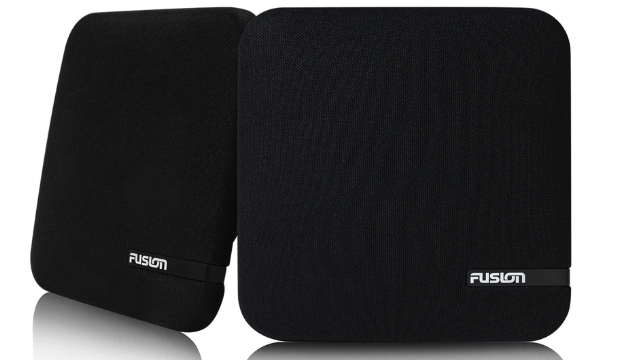

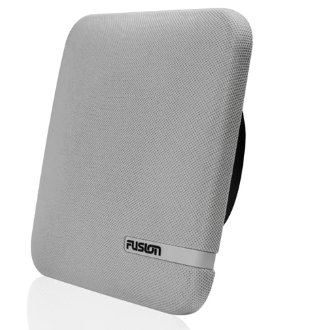

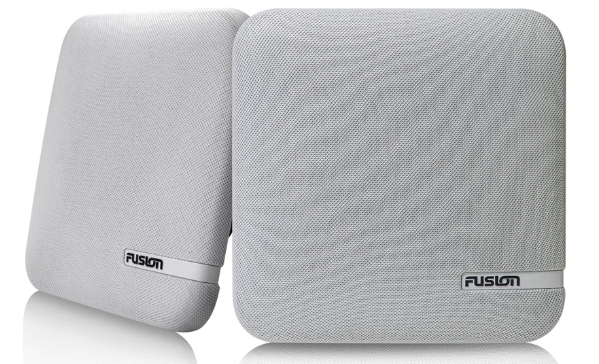

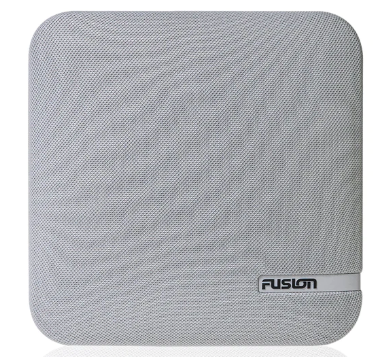

Fusion - SM Series 6.5" 100 Watt Shallow Mount Speakers - SM-F65CW / 010-02263-10 (White) | SM-F65CB / 010-02263-11 (Black)

Fusion - SM Series 6.5" 100 Watt Shallow Mount Speakers - SM-F65CW / 010-02263-10 (White) | SM-F65CB / 010-02263-11 (Black)

Pre order

Regular price $ 92.45 USD
Regular price Sale price $ 92.45 USD
Sale Pre Order
Shipping calculated at checkout.
Color

SM-F65CW / 010-02263-10

SM-F65CB / 010-02263-11

SM Series 6.5" 100 Watt Shallow Mount Speakers

Unique shallow mount design without compromizing on sound quality.

Introducing the new Fusion SM Series shallow mount speakers, designed for installations where mounting depth is limited without compromizing on sound quality and performance. The SM Series speakers are engineered with a sealed, perfectly-tuned enclosure to deliver quality audio reproduction that normally could not be achieved from the limitations of shallow mounting depths.

Available in two colors (black or white), the SM Series speakers are a stylish addition to your vessel with its clean aesthetics and unique shallow mount form factor.

Features:

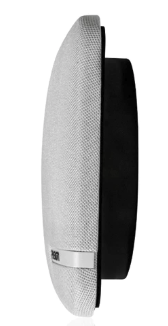

Shallow Basket Design - With a shallow mounting depth of only 24mm [15/16"], the SM Series speakers are ideal for installation where mounting depth is limited.

Tuned, Sealed Enclosure Design - Protects the speakers' components from damage and ensures quality audio reproduction is delivered that normally could not be achieved by a speaker with such a shallow design.

Retrofittable - The SM Series speakers have a circular back with a mounting diameter clearance of 130mm [5-1/8"], allowing it to fit easily into existing 6.5" speaker cutouts.

Aesthetic Interior Design - Designed with aesthetics in mind, the SM Series come with a high-end acoustic fabric grille and feature rounded edges and contour cues to add style to your vessel.

IP65 Weatherproof - The SM Series speakers are rated IP65 for protection against dust and water ingress in the harsh marine environment.



Product Specifications

Speaker Enclosure Size 155mm x 155mm [6-1/8" x 6-1/8"]
Peak Power Rating 100 Watts
Driver Size Tuned and optimized 3"
Efficiency (1W/1M) 84 dB
Frequency Response 150 Hz - 20 kHz
Nominal Impedance 4 Ohms
Cone / Surround Material Polypropylene with rubber surround
Mounting Diameter Clearance 130mm [5-1/8"]
Mounting Depth Clearance 24mm [15/16"]
Operating Temperature Range 0 to 50°C (32 to 122°F)
Storage Temperature Range -20 to 70°C (-4 to 158°F)
Water and Dust Resistance (IP rating) IP65
Speaker Dimensions: Length x Height x Depth 155mm x 155mm x 46mm [6-1/8" x 6-1/8" x 1-13/16"]
Warranty 1 year
