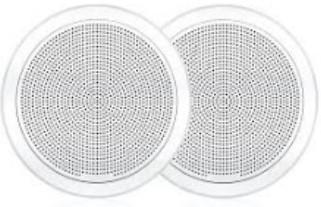

Fusion - FM Series 7.7" 200 Watt Flush Mount Round Marine Speakers - FM-F77RW / 010-02300-00 (White)

Fusion - FM Series 7.7" 200 Watt Flush Mount Round Marine Speakers - FM-F77RW / 010-02300-00 (White)

Pre order

Regular price $ 246.58 USD
Regular price Sale price $ 246.58 USD
Sale Pre Order
Shipping calculated at checkout.
Color

FM-F77RW / 010-02300-00

FM Series 7.7" 200 Watt Flush Mount Marine Speakers

Clear audio, clean aesthetics, all-class.

Engineered for high-quality audio reproduction with innovative design aesthetics, Fusion's new FM Series flush mount marine speakers are designed to deliver enhanced acoustics to your vessel in a sleek and minimalistic form factor to meet the latest boat design trends.

Featuring an intelligent mounting system for non-intrusive, easy installation, the FM Series speakers are designed to be flush mounted with a mounting profile no thicker than 2.5mm [3/32"] for a premium, visually-appealing, near-flat finish.

With an IP65 weatherproof rating, True-Marine™ accreditation and an industry-leading 3-year warranty, you can enjoy peace of mind that your FM Series speakers are built to last on board season after season.

Features:

Optimized Full Range Speaker: The FM Series speakers are acoustically optimized for performance in the marine environment, by combining optimized speaker drivers and aluminum dome tweeters to produce quality sound at all volumes.

Innovative Design Aesthetics: Designed with a low profile, near-flat installation for a visually appealing finish, the FM Series will complement the aesthetics of any vessel.

Non-Intrusive Mounting System: The FM Series uses 'speaker legs' that keep the speaker in place without the need to create any screw holes in your vessel.

True-Marine™ Designed and Engineered: Extensively tested to perform in the harsh marine environment, the FM Series carry an IP65 weatherproof rating along with True-Marine accreditation.

Designed To Comply With ISO12216: Tested to international standards for pressure and watertightness, it recognizes the FM Series are designed and built to the highest industry standards for quality and robustness.

Product Specifications

Speaker Size 7.7"
Peak Power 200 Watts
RMS Power Rating 50 Watts
Efficiency (1W/1M) 91 dB
Frequency Response 80 Hz - 18 kHz
Nominal Impedance 4 Ohms
Recommended Amplifier Power (RMS) 20 - 150 W/Ch
Tweeter Type Aluminum dome
Cone / Surround Material Polypropylene with cloth surround
Mounting Diameter Clearance 165mm [6-1/2"]
Mounting Depth Clearance 83mm [3-1/4"]
Optimum Enclosure Volume (Sealed enclosure, fully filled with absorption material) 8L
Operating Temperature Range 0 to 50°C (32 to 122°F)
Storage Temperature Range -20 to 70°C (-4 to 158°F)
Water and Dust Resistance (IP rating) IP65
Speaker Dimensions: Length x Height x Depth Ø 181mm x 80.4mm [Ø 7-1/8" x 3-3/16"]
Warranty 3 years
