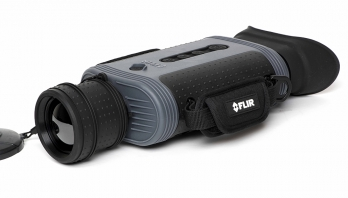

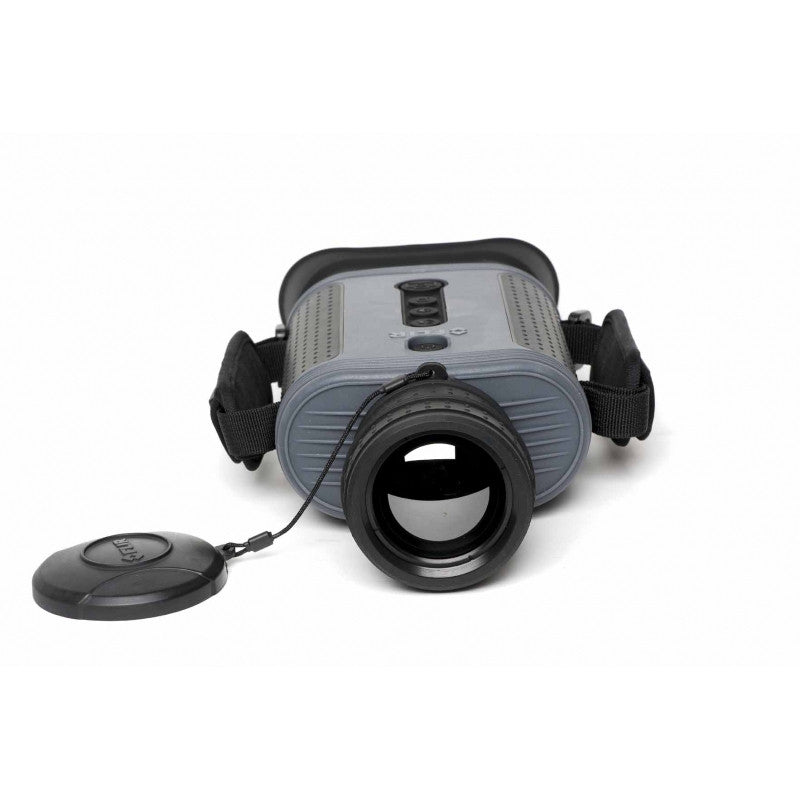

Flir -432-0006-16-00S-BHM-3X, 9 Hz, PAL, 320x240 Slow Video

With FLIR's BHM-Series bi-ocular thermal night vision systems, marine emergency response crew can respond with the confidence that comes from being able to see clearly in the total darkness.
BHM-Series imagers make pictures from heat, not light, letting first responders to see other boats, obstructions, land, buoys, and floating debris in total darkness, as well as through haze, smoke, and light fog.
BHM-Series thermal imagers are the best search and rescue tools on the water regardless of lighting conditions. BHM-Series cameras have interchangeable lenses so you can choose the right lens for each mission. They also let you visually verify radar returns and see things in the water that radar might miss.
Perfect for use on vessels any size, the BHM-Series is a handheld, battery-powered, thermal night vision cameras give you the edge in all your nighttime missions.

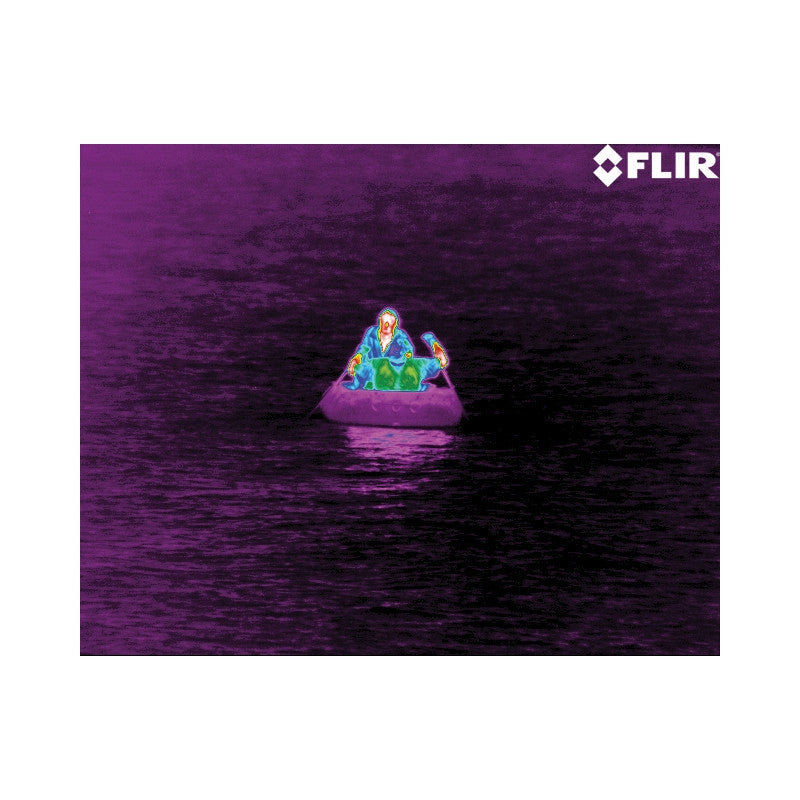

• SAR - When people have fallen in the water, saving time saves lives. The high-resolution thermal sensor lets you scan large expanses of water at night or in glaring sunlight and find your target quickly from farther away.
• Surveillance - See straight through camouflage and in low contrast lighting, locating and identifying subjects and vessels that may not want to be found.
• Situational Awareness - Easily see how far you are from the shoreline, pilings, docks, floating debris, or boats at anchor.

Compared to monocular (one eyepiece) cameras, the BHM-Series unique bi-ocular (dual eyepiece) design is less tiring to use over long missions, easier to hold steady on rough waters, and gives you greater range performance. Plus its Video Out connection makes it easy to connect to an onboard monitor or DVR.
System
Field-of-View

• 35mm (optional lens) - 13° x 10° NTSC
• 65mm (optional lens) - 7° x 5° NTSC
• 100mm (optional lens) - 5° x 3° NTSC
  Detector Type
• 320 x 240 VOx Microbolometer
  Thermal Sensitivity
• Waveband
• 7.5 - 13.5µm
  Image Processing
• FLIR Proprietary Digital Detail Enhancement

Range Performance
Detect Man(1.8m x 0.5m) / Small Vessel(2.3m x 2.3m)

• 35mm (optional lens) - 2, 560'(780m) / 1.3mi(2.2km)
• 65mm (optional lens) - 4,760'(1.5km) / 2.4mi(3.9km)
• 100mm (optional lens) - 1.3mi(2.1km) / 3.3mi(5.3km)
  User Interface
  Power Button

  • On/Off/Standby
    Picture Button
  • Still & Video image capture to SD card
    Zoom Button
  • 2x E-zoom
    Polarity
  • Toggles Between White Hot, Black Hot, Marine Red Displays

  Image Presentaion
  Built-In Display

  • LCD Display
    Video Output
  • NTSC or PAL composite video; RCA Jack
    Video Refresh Rate

  Power
  Battery Type

  • 4 AA Batteries; NiMH, Li-Ion, or Alkaline
    Battery Life(Operating)
  • >5 Hours on NiMH batteries
    Battery Life(Standby)
  • 120 Hours on NiHM Batteries
    Environmental Rating
  • IP-67, Submersible
    Operating Temp
  • -4°F to 140°F (-20°cto 60°C)
    Storage Temp
  • -40°F ro 167°F (-40°C to 60°C)
