With up to 640 x 480 thermal imaging, M-Series cameras provide four-times the thermal resolution and more than twice the range performance compared to other systems. Automatic window heaters keep both sets of optics free of ice to deliver crystal clear video. Proprietary, patent-pending, image enhancement algorithms called Digital Detail Enhancement (DDE) let these cameras see more in the most challenging conditions.
Standard video signal displays on any monitor with an auxiliary video input. Watch thermal and low-light video simultaneously on multiple displays or single multi-function display. Simple Ethernet connections and IP addressability make the system simple to install and easy to control. M-Series cameras let you see more, and see farther, than ever before. Even in the dead of night.
-
Detector Type: 320 × 240 VOx Microbolometer
-
Field of view: 24º x 18º (NTSC)
-
Focal Length: 19 mm
-

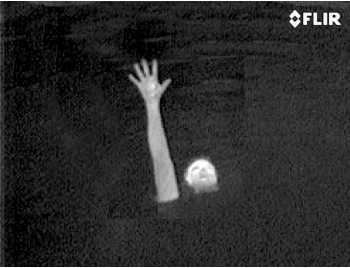

Person In Water Range: 1,500'
-

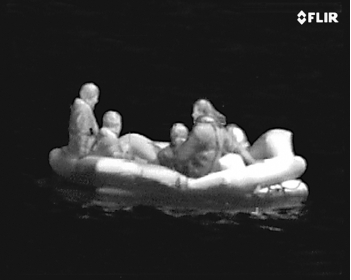

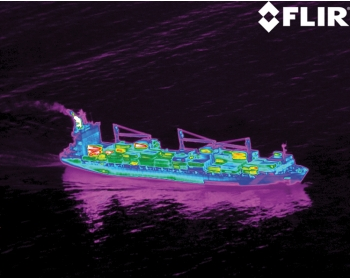

Small Vessel Range: 4,200'
-
Power Requirements: 12V-24V DC
-
Draw: Approx. 1-2A, 25W nominal/50W max.
-
Connector Types: BNC with BNC-to-RCA adapter included for video out
-
Operating Temperature Range: -25°C to +55°C
-
Water Resistance Rating: IPX6
-
Included Equipment: Camera head with 18" pigtails for power, analog video and ethernet, joystick control unit (standard with M-Series), operator manual
-
Dimensions: 7" dia. x 11 3/16"H
-
Weight: ~ 9 lbs
