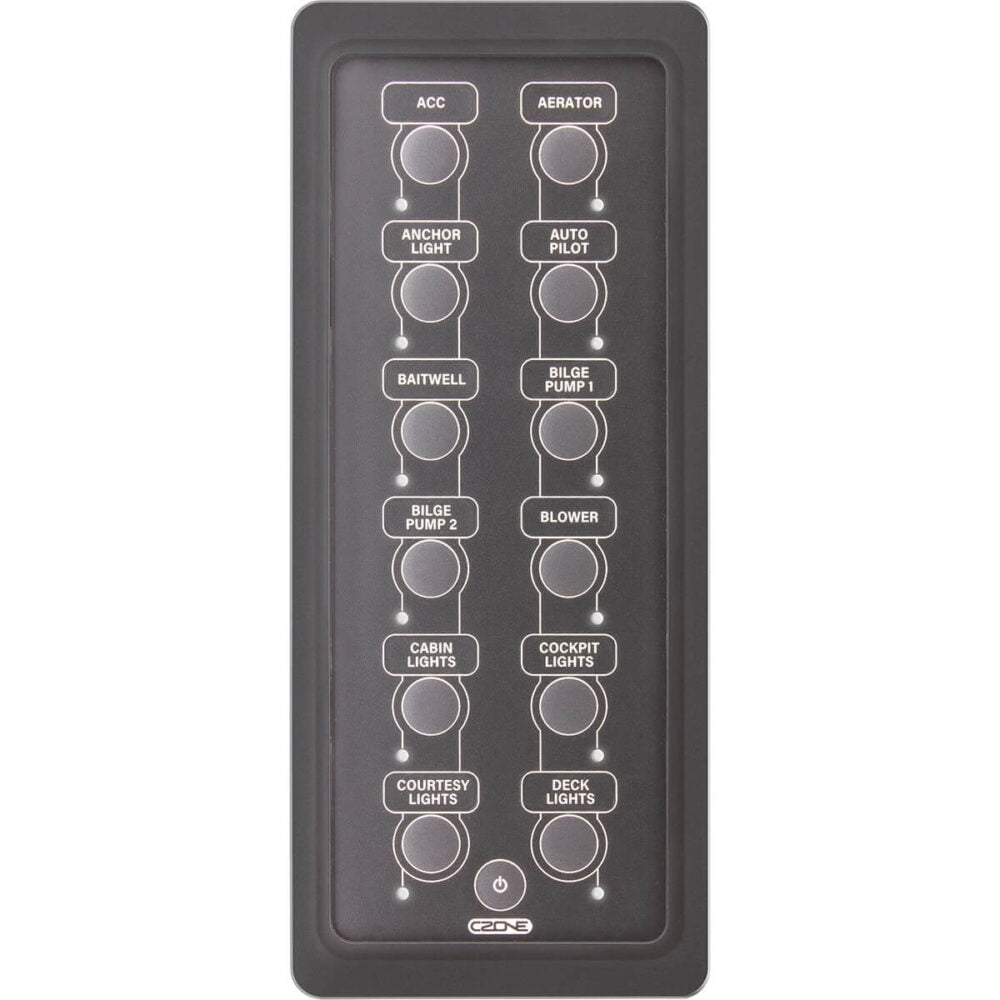

CZone 80-911-0164-00 Waterproof Keypad 2x6

CZone 80-911-0164-00 Waterproof Keypad 2x6 (Portrait)

The CZone 80-911-0164-00 is an IPX7-rated 12-button (2x6 matrix) portrait digital switching keypad engineered for high-density helm consoles, flybridges, companionways, and wet deck environments. Serving as an intuitive tactile control bank within the CZone digital switching network, this keypad provides direct manual control over up to twelve discrete vessel electrical loads or automated CZone modes—including lighting zones, pumps, blowers, and navigation systems.

Featuring a streamlined vertical profile, the keypad supports versatile mounting options including front panel installation, rear glass-bridge flush mounting, or surface mounting. It incorporates dimmable RGB LED backlighting behind customizable icon inserts along with individual multi-color LED status rings that deliver immediate visual feedback for circuit state and blown-fuse fault conditions. Communicating natively over NMEA 2000, it draws power directly from the CAN bus with minimal network load.

Key Features

• High-Density 12-Button Layout: Consolidates control of twelve independent circuits into a single compact, vertical housing to save valuable helm space.

• IPX7 Submersible Waterproof Protection: Molded silicone membrane and sealed housing protect internal electronics against temporary water immersion and high-pressure hose-downs.

• Multi-Position Mounting Support: Supports front installation, flush rear-mount installation for glass-dash aesthetics, or surface bracket mounting.

• Dimmable RGB Backlighting & Status Indication: Adjustable RGB key backlighting with multi-color status rings around each button for instant visual feedback on active loads or circuit faults.

• NMEA 2000 Micro-C Interface: Connects directly into the vessel CAN-bus backbone using a single drop cable, simplifying behind-dash wiring.

• Interchangeable Icon Inserts: Compatible with standard CZone label sheets for personalized circuit identification.
