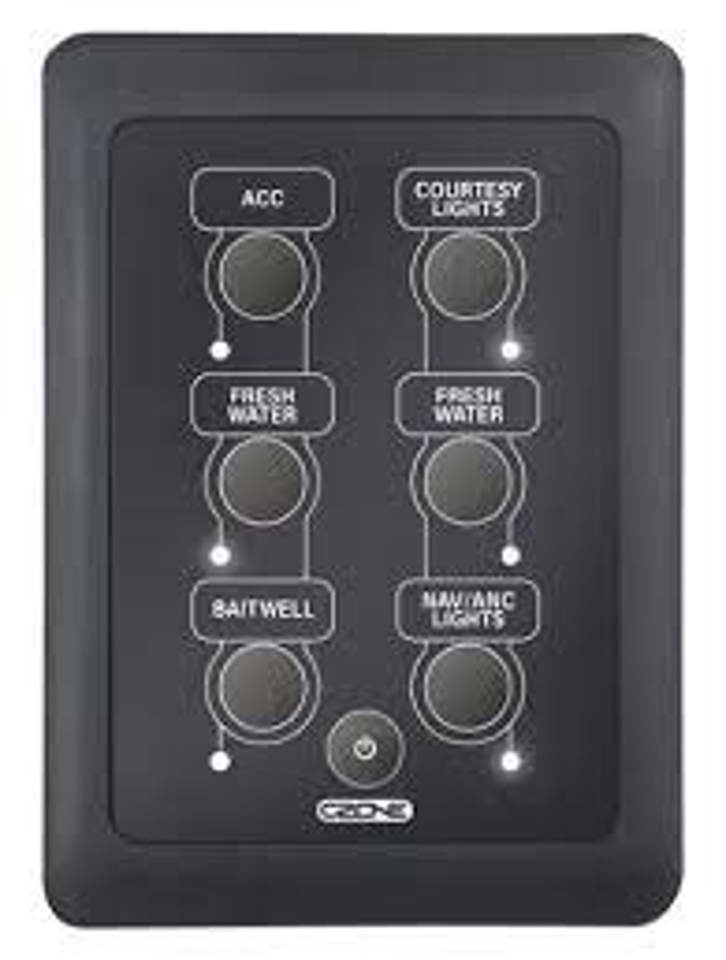

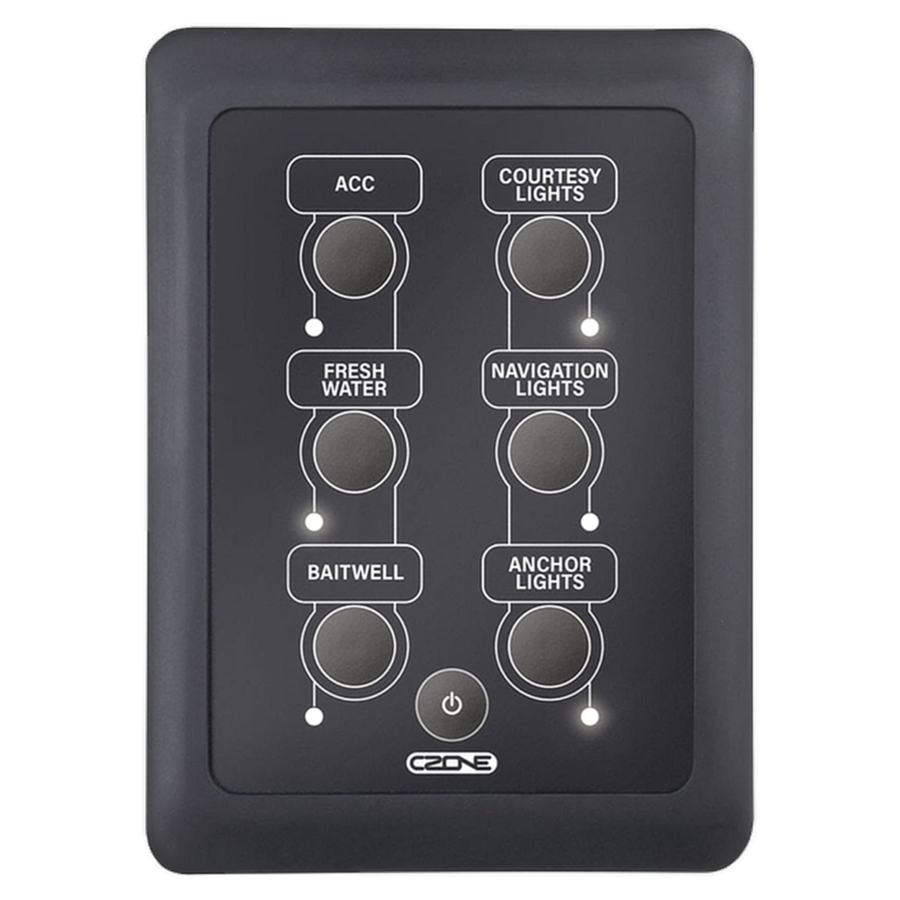

CZone 80-911-0163-00 Waterproof Keypad 2x3 Portrait

CZone 80-911-0163-00 Waterproof Keypad 2x3 (Portrait)

The CZone 80-911-0163-00 is an IPX7-rated 6-button (2x3 matrix) portrait digital switching keypad engineered for space-constrained helm consoles, flybridges, companionways, and wet deck environments. Operating as an intuitive tactile interface within the CZone digital control architecture, this keypad gives boaters direct manual control over vessel electrical loads—including lighting, pumps, blowers, and automated circuit modes—via a single network drop connection.

Featuring a low-profile design, the keypad can be front-mounted using a single 2-1/16'' (52 mm) hole saw cutout, rear-mounted for a flush glass-dash appearance, or surface-mounted. It integrates dimmable RGB LED backlighting behind customizable icon inserts along with individual multi-color LED status rings that provide instant feedback for circuit operation and blown-fuse fault conditions. Communicating natively over NMEA 2000, it draws ultra-low power directly from the CAN bus.

Key Features

• IPX7 Submersible Waterproof Rating: Fully sealed silicone membrane and enclosure protect internal electronics against temporary water immersion and heavy washdowns.

• 3-Way Versatile Mounting: Supports front mounting via a single 2-1/16'' (52 mm) hole saw, rear mounting for a flush glass dash aesthetic, or standard panel bracket installation.

• Dimmable RGB Backlighting & Status LEDs: Multi-color RGB LED backlighting with adjustable brightness levels and dedicated circuit status rings showing active load status or blown-fuse warnings.

• Single Cable NMEA 2000 Interface: Connects directly into the vessel CAN-bus backbone using a single Micro-C drop cable, drastically reducing behind-dash wiring clutter.

• Customizable Icon System: Accepts standard CZone interchangeable label inserts to clearly identify custom circuit assignments.

Specifications
