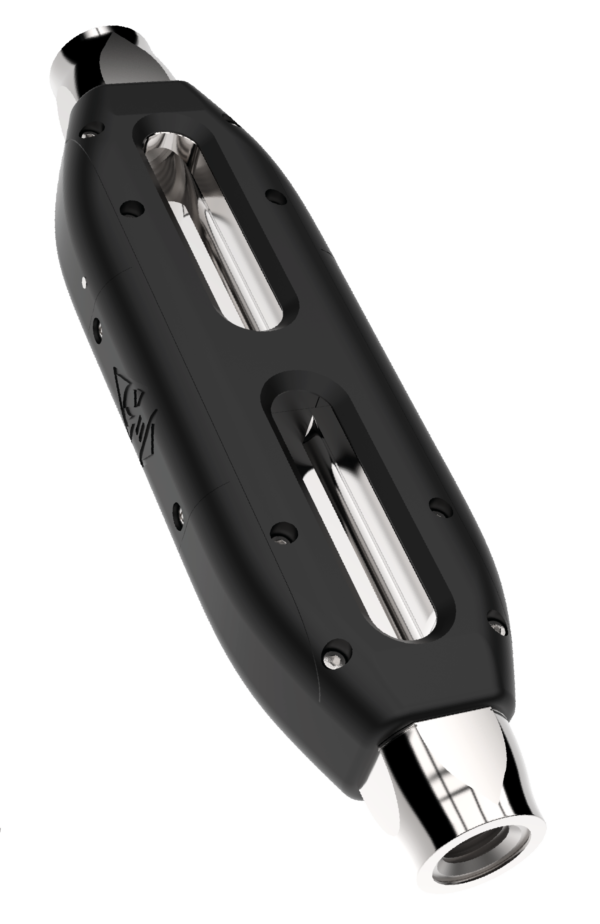

Cyclops Marine - TS09

The smarttune range is designed for quick installation into standing rigging such as forestay/backstay/shrouds/diagonals. Available in 7 sizes for a wide range of boat classes (sensor size represents turnscrew/thread diameter). The 7/8″ is our largest thread size for smarttune sensors, if your requirements are out of this range we suggest inquiring about a Load Pin here.

• Thread size 7/8″
• Calibrated load 8000kg
• Breaking load 17000kg
• Sensor dimensions 70 x 320 x 40mm
• Sensor weight 1530g
• 2 x AAA batteries power supply

• Easily replaces existing rigging turnscrew
• Waterproof beyond IP68
• 2x AAA batteries power supply
• Approx 16 months battery life
• Adjustable data rate via smartfittings app
• Wireless connection to your phone via the smartfittings app
• Wireless connection directly to Vakaros Atlas 2 and Sailmon MAX
• Wireless connection to electronic boat displays via the Cyclops gateway
• Data log for analysis stored in smartfittings app and Cyclops gateway
• Lightweight and low windage
• Accurate to +/- 1% of maximum working load
• Designed to fit rigging with relevant working loads
