Fusion - MS-RA70 / 010-01516-01 - Marine Entertainment System with Bluetooth
Fusion - MS-RA70 / 010-01516-01 - Marine Entertainment System with Bluetooth
Low stock: 1 left
Couldn't load pickup availability
MS-RA70 / 010-01516-01
Marine Entertainment System with Bluetooth
Fusion's sleekest value-packed marine stereo in a DIN sized form factor.
Sources: AM / FM / Bluetooth / USB / AUX / iPhone / iPod / Android AOA / DAB+ Ready (Requires MS-DAB100A)
Introducing the MS-RA70, Fusion's sleekest value-packed marine stereo, designed to deliver a quality on-water entertainment experience by incorporating some of the latest marine technologies. The MS-RA70 is engineered to seamlessly replace any standard DIN sized non-marinized stereo without the need to reconfigure dash space. Clever styling gives the installer the option of either mounting the stereo with a conventional flush finish or integrating it flat into a glass helm, ensuring a high-end finish to the installation.
UPDATE: Now with added support for Fusion-Link Lite via ANT for Garmin watch control.
Features:

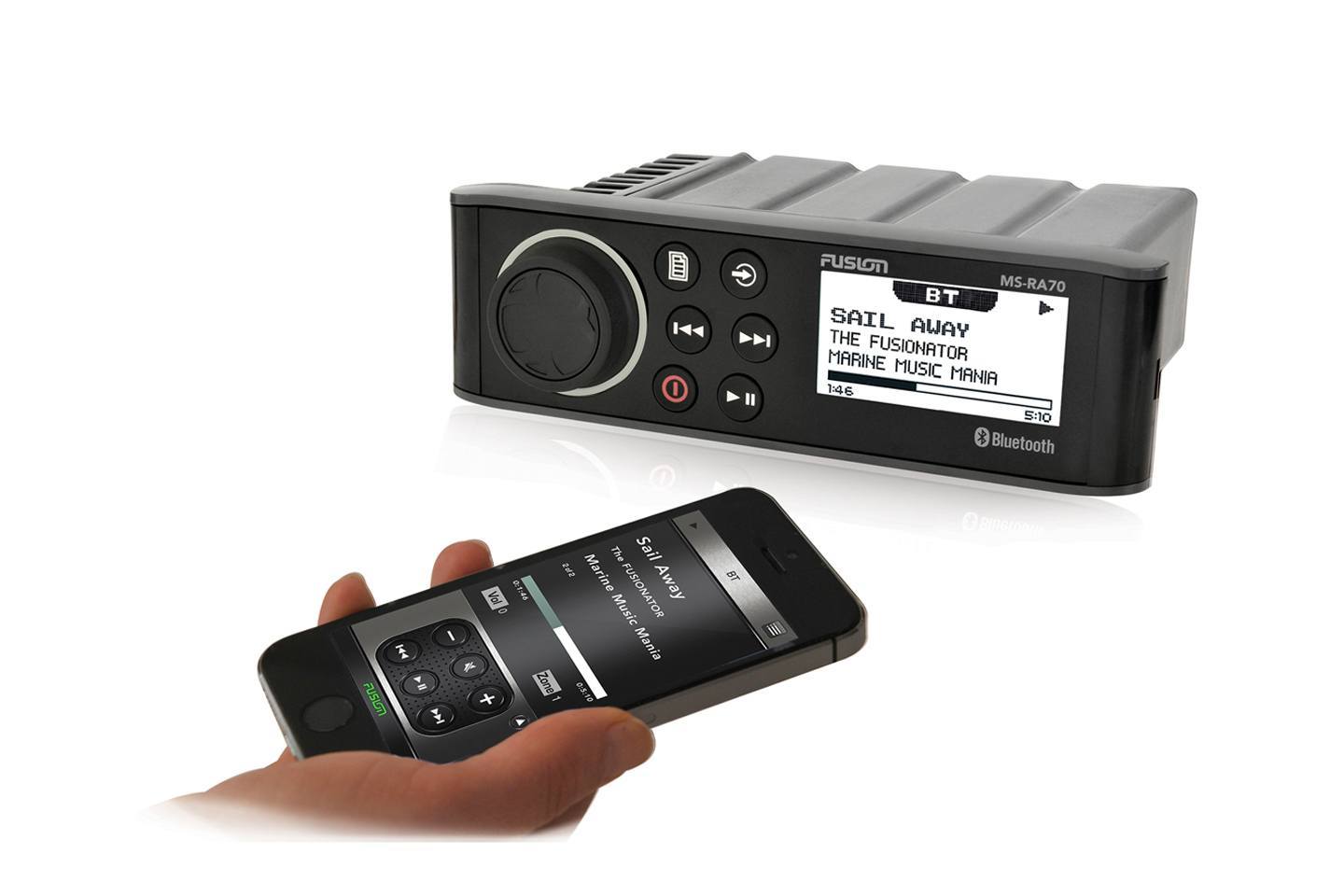

A2DP Bluetooth wireless technology with Fusion-Link app remote control available - Stream your favorite soundtrack from any compatible device with control* available from the stereo or your connected Apple or Android device via the Fusion-Link Bluetooth app. Simply download the free Apple® or Android™ Fusion-Link remote control app for Bluetooth from Apple App Store® or Google Play™ Store and enjoy localized zone control, source navigation, track selection and the freedom of wireless control.
The Fusion-Link Wireless Remote Control for iPad or iPhone is available for FREE download from the Apple App Store, click HERE
The Fusion-Link Wireless Remote Control for Android is available for FREE download from Google Play, click HERE
To download the free Fusion-Link Lite app from the Connect IQ Store, click HERE
Multiple sources available including USB MP3 playback and AM/FM radio - Listen to USB MP3 audio, connect your supported smartphone or even relax to your local AM/FM station; the MS-RA70 delivers marine grade entertainment to those who would normally have to resort to installing rust prone car audio stereos. Rest easy, let Fusion entertain you on the water. Note: DAB radio requires the MS-DAB100A module and antenna package (sold separately).
IPX7 water resistant front face with optically bonded LCD - The MS-RA70 is designed and engineered specifically for the marine environment, with an IPX7 front panel (when mounted correctly) to withstand the environment like none other, perfectly paired with an optically bonded LCD for crystal clear display on the water.
Flush or flat mounting installation options - Two options are available for installation, giving you the option of a conventional flush mount or seamless integration into a glass helm with a flat finish for high-end aesthetics.
Multi-Zone Control (2 Zone System) - With two independent audio zones available, each with advanced localized menu controls, including zone naming, you can easily customize and control your listening experience in each zone. Note: Line Out/Sub Out requires additional amplification.
*Play, pause and skip tracks.
The MS-RA70 is protected by a 12 month worldwide consumer warranty.
Product Specifications
| Tuner | AM/FM with RDS (where available) |
|---|---|
| Tuner Region | USA, Australasia, Europe and Japan |
| Multi-Language User Interface | English, French, German, Spanish, Dutch and Italian |
| Peak Power | 200W Max. (@ 4 Ω) |
| Audio Zones | 2 on-board amplified zones |
| Nameable Zones | Up to 10 characters per zone |
| Line Out | 2 (1 x L + R per zone. Requires amplification) |
| Subwoofer Out | 1 (Zone 1. Requires amplification) |
| Auxiliary Inputs | 1 x Stereo RCA Input (AUX) |
| iPod/iPhone | Made for iPod and iPhone - supports IAP 2 protocol only |
| Android Open Accessory (AOA) | Support for compatible Android media devices via USB. Android support is limited to devices which support AOA protocol. |
| DAB+ Ready | MS-DAB100A (sold separately) is required for DAB support. Only available where DAB and DAB+ is broadcast |
| Display | 128x64 monochrome optically bonded LCD |
| Fusion-Link Wireless | A Fusion-Link remote control app is available for compatible Apple and Android devices. Visit the Apple® App Store or Google Play™ to download the free app. |
| ANT Technology | Download the free Fusion-Link Lite app from the Connect IQ Store to enable wireless control via ANT technology from your compatible Garmin watch |
| Fusion-Link Lite app for Garmin watches | VivoActive/HR, Fenix 3/HR, Fenix 5/S/X, Quatix 3, D2 Bravo/Titanium, Fenix Chronos, Forerunner 935 - Fusion-Link Lite App available via Garmin Connect IQ |
| Bluetooth Wireless Technology | A2DP Bluetooth audio streaming with AVRCP support (album art is not supported) |
| USB | 1 x USB connector at the rear of the unit, supports 1 amp charging |
| Audio Format USB | MP3 |
| Water Resistance (IP Rating) | IPX7 water resistant from the front panel when correctly mounted. |
| Chassis | Electrically isolated glass filled composite chassis with an aluminium heat sink |
| Physical Dimensions: Width x Height x Depth (incl. Volume Encoder) | 188mm x 60mm x 123.5mm [7-7/16" x 2-3/8" x 4-7/8"] |
| Mounting Dimensions: Width x Height x Depth | 162mm x 51mm x 100mm [6-3/8" x 2" x 3-15/16"] |
Amplifier Specifications
| Amplifier | Class-AB: 4 x 26W rms @ 14.4Vdc input, 4 Ω, ≤ 10% THD+N |
|---|
