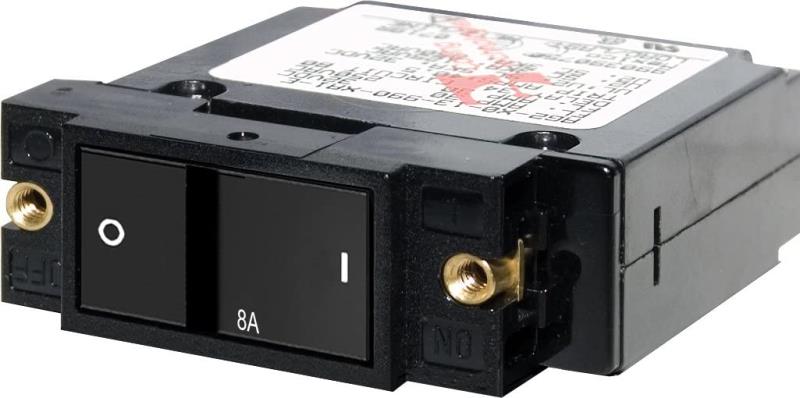

Blue Sea Systems - 7401-BSS - A-Series Flat Rocker Circuit Breaker - Single Pole 8A
Blue Sea Systems - 7401-BSS - A-Series Flat Rocker Circuit Breaker - Single Pole 8A
Low stock: 4 left
Regular price
$ 34.46 USD
Regular price
$ 34.46 USD
Sale price
$ 34.46 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
- Rocker actuator is flush in the “ON” position, eliminating the risk of accidential switching
- Color actuator indicates “OFF” position
- “Trip Free” design cannot be held “ON” during fault current condition
- 2 different actuator styles available
- Prevents accidental switching of 24 hour circuits
- International ON/OFF symbols support vertical or horizontal mounting
| Specifications | |
|---|---|
| Amperage | 8A AC 8A DC |
Actuator Style
|
Flat Rocker |
| Poles | 1 |
| Maximum Voltage | 240V AC 32V DC |
| Circuit Breaker Type | Magnetic Hydraulic - trip free |
| Interrupt Capacity
|
3000A @ 125V AC 1500A @ 240V AC 5000A @ 32V DC |
| Minimum Operating Temperature | -40° C |
| Maximum Operating Temperature | 85° C |
| Mounting Screw | #6-32 Stainless Steel |
| Mounting Screw Torque | 6 in-lb (0.68 Nm) |
| Screw Terminal Torque | 14 in-lb (1.58 Nm) |
| Switching Cycles | 10000 |
| Terminal Screws | #10-32 Stainless Steel |
| Weight | 0.18lb (0.08 kg) |
