Blue Sea Systems
Blue Sea Systems - 5511E-BSS - SWITCH BATTERY 2 POLE CROSS CONN
Blue Sea Systems - 5511E-BSS - SWITCH BATTERY 2 POLE CROSS CONN
Low stock: 2 left
Regular price
$ 85.88 USD
Regular price
$ 85.88 USD
Sale price
$ 85.88 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

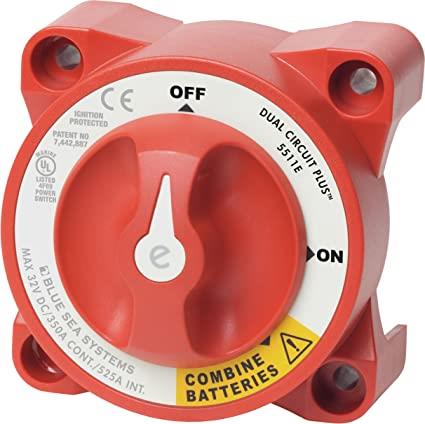

e-Series Dual Circuit Plus™ Battery Switch
5511e
Simultaneously switches two isolated battery banks or combines battery banks to all loads
- Make-before-break contact design allows switching without power interruption
- Ignition protected—safe for installation aboard gasoline powered boats
- Case design allows surface or rear panel mounting
| Specifications | |
|---|---|
Switch Type
|
Dual Circuit Plus |
| Color | Red |
| Switch Positions | 3 |
| Battery Combine | Yes |
| Alternator Field Disconnect
|
No |
| Maximum Voltage | 32V DC |
| Terminal Stud Torque | 140 in-lb (15.82 Nm) |
| Continuous Rating
|
350A |
| Intermittent Rating
|
525A (5 min) |
| Cranking Rating 30 sec
|
700A per circuit |
| Battery Inputs | 2 |
| Cable Clearance For 4/0 AWG Cables | 1.10in (27.94 mm) |
| Cable Size to Meet Ratings | 4/0 AWG (120mm²) |
| Mounting Holes | Accept 1/4" (M6) Screw |
| Stud Material | Tinned Copper |
| Terminal Stud Size | 3/8" - 16 (M10) |
| Weight | 1.16lb (0.53 kg) |
| Weight | 1.30lb (0.59 kg) |
