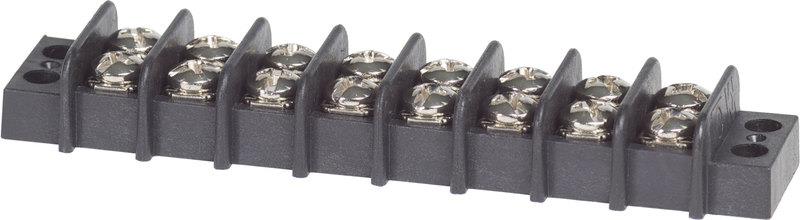

Blue Sea Systems - 2408-BSS - Terminal Block, Ind 8 cir 20A
Blue Sea Systems - 2408-BSS - Terminal Block, Ind 8 cir 20A
Low stock: 2 left
Regular price
$ 8.18 USD
Regular price
Sale price
$ 8.18 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Terminal Block 20A - 8 Circuit
2408- Closed back design completely insulates power from the mounting surface
- Each screw pair is one isolated circuit
- Jumpers allow creation of common circuits
| Specifications | |
|---|---|
| Circuits | 8 |
| Length | 3.66in (92.96 mm) |
| Maximum Voltage | 300V AC/DC |
Continuous Rating
|
20A |
| Base Material | UL 94 V0, PC |
| Bus Material | Nickel-Plated Brass |
| Mounting Screw | #6 [M3.5] |
| Screw Material | Stainless Steel |
| Screw Terminal Torque | 7 in-lb (0.79 Nm) |
| Terminal Screws | M3.5 |
| Wire Terminal Size | #6 [M3] |
| Weight | 0.10lb (0.05 kg) |
