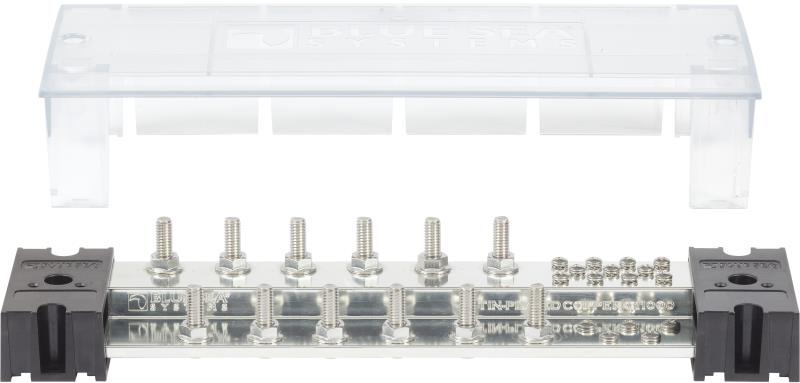

PowerBar 1000 - 12 5/16" Terminal Studs

1993

Complex wiring systems require a single point to consolidate large and small conductors. The PowerBar 1000 offers a 1,000 Amp busbar with various size studs and screws to connect conductors and fuse blocks.

• 1,000 Amp busbar for large complex wiring systems
• Tin plated pure electrical copper for maximum conductivity
• Stepped bus design offers two elevations for conductors which doubles
the density of the wire loom compared to traditional bus bars
• Busbar and fuse block elevations match common fuse blocks allowing for multiple fuse block attachment, eliminating the need for connecting cables
• One-piece serrated flange nuts ensure correct and secure connections
• Stainless steel 8-32 screws with captive lock washers for securing smaller gauge wires
• Busbar may be cut to a shorter length to accommodate constricted spaces
• Bi-directional busbar end caps allow the ganging of additional busbars
• Snap on insulating cover meets ABYC and USCG requirements and includes label recess



Specifications
Maximum Voltage	150V
Number of Terminal Studs	12
Terminal Stud Torque	120 in-lb (13.56 Nm)
Continuous Rating	1000A
Base Material	UL 94-V0 Rated, Glass Reinforced Thermoplastics
Bus Material	Tin-Plated Copper C11000
Mounting Holes	Accepts #10 (M5) Screws
Screw Terminal Torque	18 in-lb (2.03 Nm) #10-32 15 in-lb (1.69 Nm) #8-32
Terminal Screws	#10-32 #8-32
Terminal Stud Size	5/16" - 18
Weight	8.00lb (3.63 kg)
