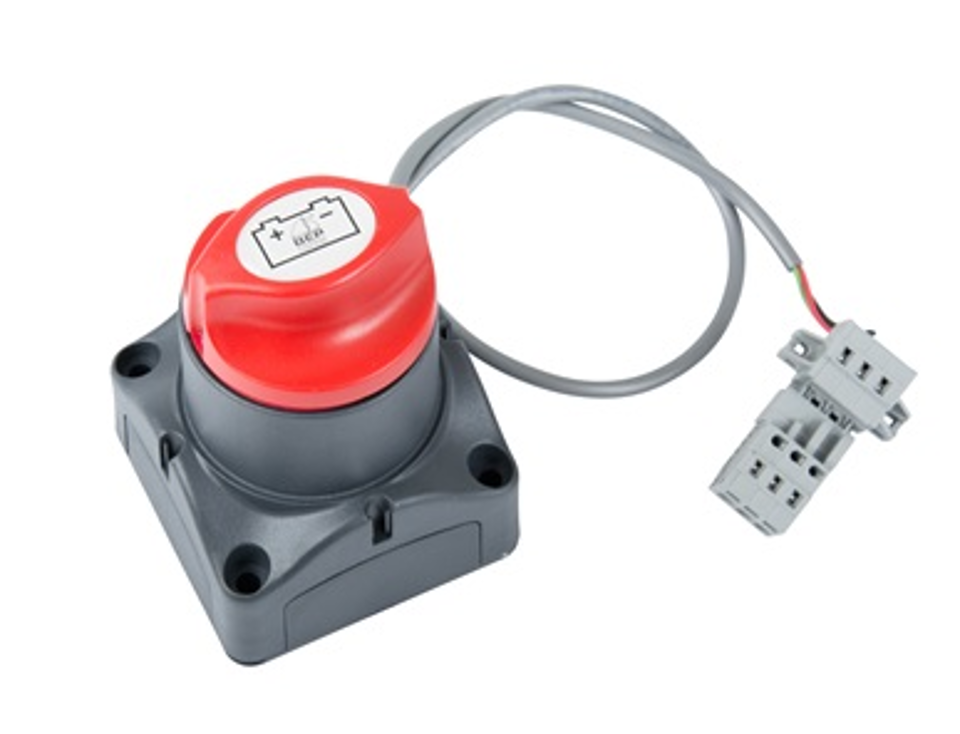

BEP - 701-MDCZ - BAT SW MD CZONE 275A CONT MC6

NEW for 2015! Optimised for use with, or alongside CZone digital switching systems, the 701-MDCZ is a further development of our proven 701-MD motorized remote battery switches.

• Simplifies and speeds CZone installations. Positive activation allows direct wiring from CZone output modules instead of wiring a relay to convert to negative activation.
• Allows multiple remote switches to be connected to the same battery switch by using momentary positive remote activation e.g. connecting a wireless remote control, plus a switch on the dashboard
• Red wire output can directly drive a piezo buzzer, so "ON" (2 chirps) and "OFF" (1 chirp) signals are sounded to acknowledge remote control activation
• Provides greater fail-safe reliability as battery switch remains in the same state even if remote control power/connections are lost
• 275A Continuous / 455A 5 minutes Intermittent / 1250A 10 seconds Cranking (cable size to achieve ratings 70mm��, 2/0, smaller cable size will reduce the Amp rating)
• Tested to UL1107 ignition protection, CE
• Tinned copper 10mm (3/8") studs
• Stainless steel washers/nuts
• Fiber reinforced high temperature plastics
• Waterproof to IP66
• Removable knob allows isolation during servicing
• 3 removable sideplates for protection Note: Not suitable for emergency parallel applications
• Wago and Deutsch plug versions
• Note: Piezo buzzers that work directly with the 701-MDCZ switches are 54-27C4/DSP (OEM: 54-27C4) 85 dB and 54-35C2/DSP (OEM: 54-35C2) 97 dB
