B&G-BGH320001-10/10HV Display Pack for H3000 and WTP3 systems.
B&G-BGH320001-10/10HV Display Pack for H3000 and WTP3 systems.
Pre order
Regular price
$ 699.00 USD
Regular price
Sale price
$ 699.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

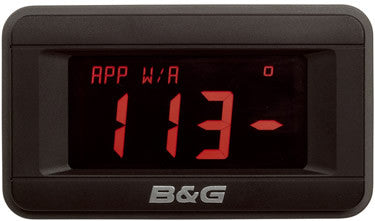

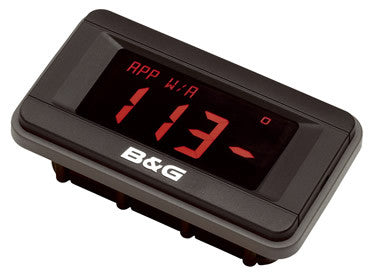

H3000 10/10 HV
Compact HVision bonded display provides ultra clear instrument information with zero condensation. HV Displays store 14 configurable pages, so whether you want to see True Wind Angle, COG or SOG, getting the crucial information in the right place is simple. Ideal display for pedestals and trimming positions.
- Bonded LCD
- Rapid Update
- Maximum clarity
- Easy To Use
- B&G Precision
- Durable
- Lightweight
- LED Backlighting
DISPLAY
| Display Resolution | Custom Segmented HVision (H x W) |
NETWORKING / CONNECTORS
| Connectors | Interfaces: Fastnet |
TECHNICAL / ENVIRONMENTAL
| Construction | Moulded ABS |
| Sealing | IP67 |
| Width | 114 mm \ 4.5 in |
| Height | 66 mm \ 2.6 in |
| Depth | 54 mm \ 2.1 in |
| Weight | 0.3 kg \ 0.66 lbs |
| Humidity | Up to 95% relative humidity |
| Operating Temperature | -10°C to 55°C / 14°F to 131°F |
POWER
| Power Supply | 12V vDC |
| Power Consumption Lights Off | 25 mA |
| Power Consumption Lights On | 50 mA |
OTHER
| Compass Safe Distance | 200 mm \ 7.9 in |
| Interfaces | Fastnet |
