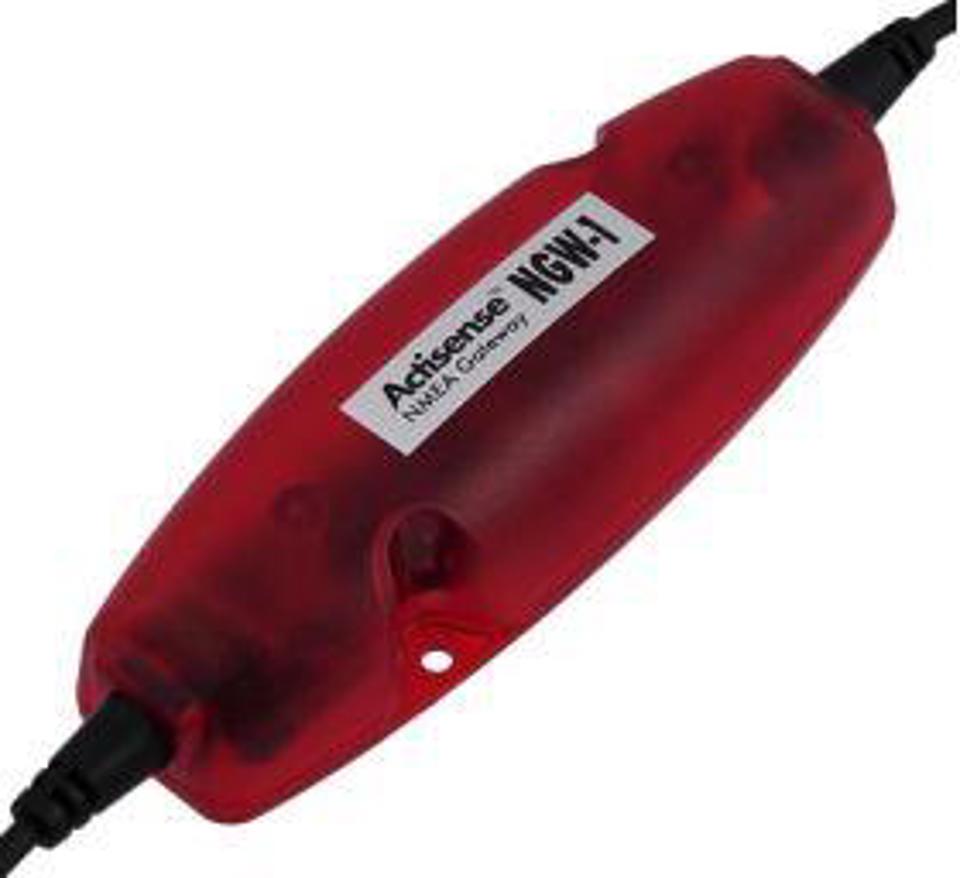

Actisense - NGW-1-USB - NMEA 2000 Gateway
Actisense - NGW-1-USB - NMEA 2000 Gateway
Low stock: 1 left
Couldn't load pickup availability
Actisense - NGW-1-USB - NMEA 2000 Gateway
NMEA 2000 PC Interface, standard version with USB.
NGW-1 – Data Sheets Issue 4.00
Actisense WinXP Vista-7-10 USB Drivers Install Manual
The NGT-1 is available in two versions:
NGT-1-USB is the standard option - USB interface for bi-directional connection to a PC.

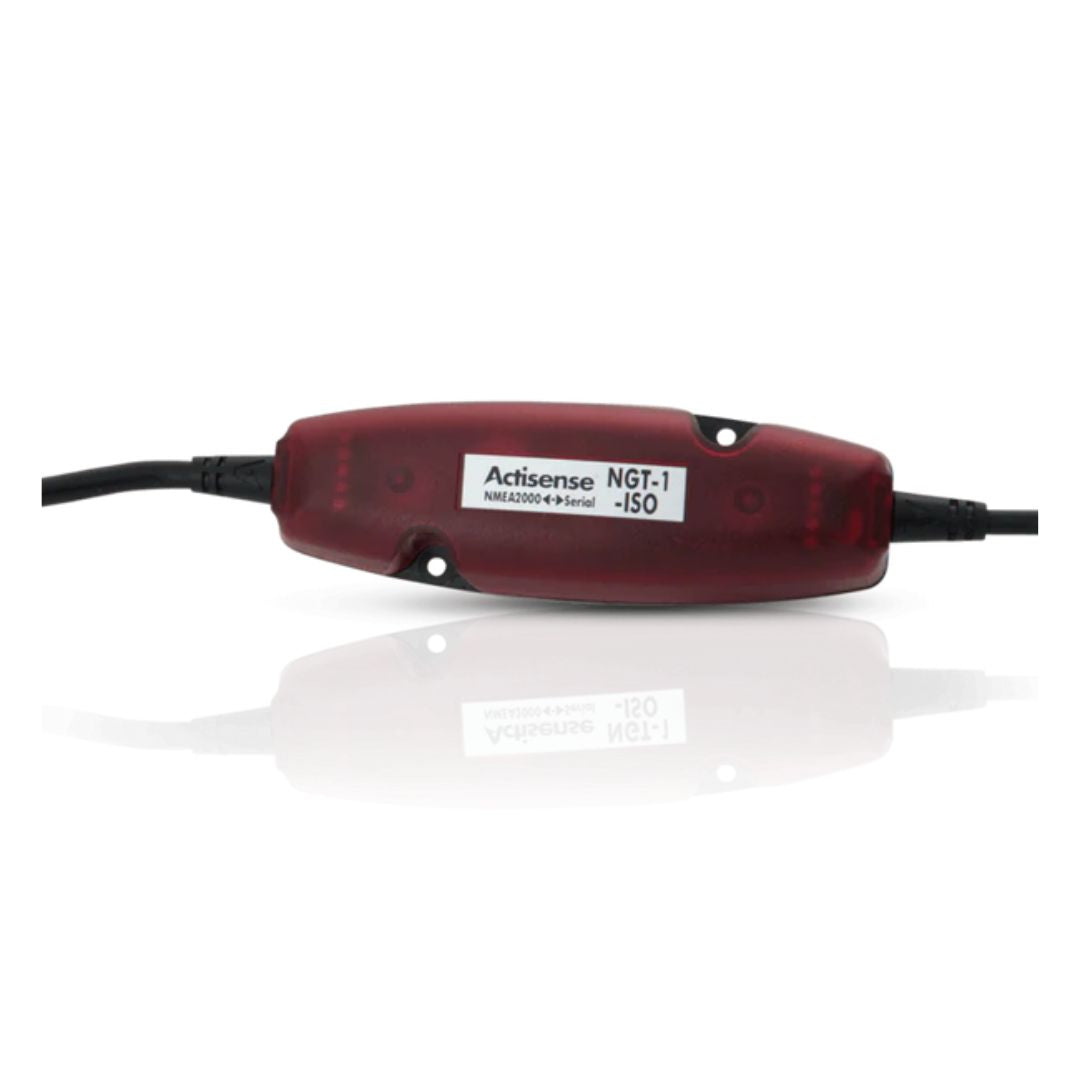

NGT-1-ISO is a more specialist option - Opto-isolated input and ISO-Drive output for a direct PC bi-directional connection.
Both versions are available with the SeaTalkNG to NMEA 2000 adaptor Cable - STNG-A06045
The SeaTalk NG to NMEA 2000® adaptor cable (STNG-A06045) is not available as a standalone product and must be bought as part of a bundle.
The firewall feature in the NGT-1 enforces the NMEA 2000 bus rules so software manufacturers can create compliant software at a fraction of the direct certification costs. The supporting Actisense Software Development Kit (SDK) helps to reduce the required development time.
With the upcoming 'Third Party Gateway' status, leading chart plotter software will be able to be certified to work with the NGT-1.
Actisense welcomes enquiries from software manufacturers who would like to incorporate NMEA 2000 and the NGT-1 into their software.
- Sends and receives pure NMEA 2000 data
- Configure and flash-update Actisense products on the NMEA 2000 bus
- Use with NMEA Reader to help diagnose network problems
- Provides a rule-enforcing firewall between a PC and an NMEA 2000 bus
- NGT-1-USB and NGT-1-ISO versions available to suit all installations
Technical Specification
| Power Supply (ISO Variant) | |
| Supply Voltage (NMEA 2000 Port) | 9.5 to 35V DC |
| Supply Current (NMEA 2000 Port) | 35mA @ 12V DC, Max 50mA |
| Load Equivalent Number (LEN) | 1 |
| Power Supply (USB Variant) | |
| Supply Voltage (NMEA 2000 Port) | 9 to 29V DC |
| Supply Current (USB Host Port) | 85mA @ 5V DC |
| Supply Current (NMEA 2000 Port) | 15mA @ 12V DC, Max 50mA |
| Load Equivalent Number (LEN) | 1 |
| NMEA 2000 Port (All Variants) | |
| Compatibility | Fully NMEA 2000 certified |
| Galvanic Isolation | Refer to 'ISO port' or 'USB port' |
| Speed / Baud Rate | 250kbps |
| Connectivity | M12 Male (A polarised) connector moulded on cable |
| Cable Length NMEA 2000 | 1.5m |
| Cable Length STNG Adapter | 0.4m (1.9m with NMEA 2000 cable connected) |
| ISO Port (NGT-1-ISO) | |
| Compatibility | Fully RS232 & RS422 compatible. |
| Galvanic Isolation | 2500V input to ground, 1500V output to ground using ISO-Drive |
| Speed/Baud Rate | 4800 to 115200 Baud |
| Output Voltage Drive | >= 2.1V (differential) into 100Ω |
| Output Current Drive | 20mA max. |
| Output Protection | Short circuit and ESD |
| Input Voltage Tolerance | -15V to +15V continuous -35V to +35V short term (< 1 second) |
| Input Protection | Current limited and overdrive protection to 40VDC |
| Connectivity | 5mm stripped and tinned wire |
| Cable Length | 1.5m |
| USB Port (NGT-1-USB) | |
| Compatibility | USB 1.1, 2.0 and 3.0 |
| Galvanic Isolation | 2500V input to ground |
| Speed / Baud Rate | 4800 to 230400 Baud |
| Connectivity | Male type A plug moulded onto cable |
| Cable Length | 1.5m |
| Drivers (Latest OS) | Windows XP, Vista, 7, 8, 10 & MAC OS X supplied on CD & available via the 'Downloads' button towards the bottom of this web page |
| Drivers (Legacy OS) | Contact Actisense for full details of the legacy OS versions supported: support@actisense.com |
| Mechanical | |
| Housing Material Lid | Polycarbonate |
| Housing Material Base | Flame retardent ABS |
| Weight NGT-1-ISO | 220g |
| Weight NGT-1-USB | 210g |
| Weight STNG Adapter | 40g |
| Approvals and Certifications | |
| Fully NMEA 2000 Certified | |
| Meets all IEC 61162-3 requirements | |
| EMC | IEC 60945 (sections 9, 10 & 11.2) |
| Environmental Protection | IP54 |
| Operating Temperature | -20°C to +55°C |
| Storage Temperature | -30°C to +70°C |
| Recommended Humidity | 0 - 93% RH |
| Guarantee | 3 years |
The Actisense NGT-1 is an NMEA 2000 certified Gateway device, enabling software applications to both read and send NMEA 2000 messages in a protected environment. The electrical isolation and firewall capabilities of the NGT-1 place it in a unique position as a computer Interface to NMEA 2000.
Actisense is committed to supporting software developers to create a wide range of NMEA 2000 capable applications for the PC, Mac & Linux. The initial list includes chart-plotters, vessel monitoring, data logging and Ethernet server applications that can display NMEA 2000 data, and/or share their own NMEA 2000 data with other devices on the network.
Below is the current list of software that is either already compatible with, or in the process of being made compatible with the Actisense NGT-1. The table indicates the development progress state of each software application to help clarify the current compatibility position (the stage key is detailed below the table). Actisense advise that customers should check with software developers to determine whether both the NGT-1-USB and NGT-1-ISO versions of the Gateway device are supported.
Please contact Actisense if you are a software developer and would like a low-cost way to incorporate NMEA 2000 and the NGT-1 into your software package.
Note: this compatibility list is currently being recompiled due to a new release to the Actisense Software Development Kit (SDK) and NGT-1 firmware. Software developers that have contacted Actisense since the release of the new software to confirm successful operation will be re-added to this list. If your software is not listed below, please contact the developer directly to find out their progress for the implementation of the new SDK and NGT-1 firmware.
| Compatible Software | ||||||||
| Software | Developer | (1) | (2) | (3) | (4) | (5) | ||
| NMEA Reader | Actisense UK |  |
|
|
|
|
||
| EBL Reader | Actisense UK | |
|
|
|
|
||
Progress stages:
[1] Collaboration between Actisense and the software developer has been agreed
[2] Software developer has issued a beta release version that supports the Actisense NGT-1
[3] Beta release version has been tested by Actisense and confirmed as working (in beta form).
[4] Software developer has issued full release version that supports the Actisense NGT-1
[5] Full release version has been tested by Actisense and confirmed as working
¹ Once the Actisense NGT-1 has been 'Third Party Gateway' (TPG) certified (the specification of which is currently being finalised by the NMEA), Actisense will be able to perform the NMEA 2000 Certifications tests on the software applications above.
When the combined 'NGT-1 & software application' is proven not to have compromised the NGT-1's NMEA 2000 certification during the required tests, Actisense will be able to apply for NMEA 2000 Certification on behalf of the software developer. The NMEA will then issue a certificate stating that the software is 'NMEA 2000 Approved for use with an Actisense NGT-1'.
