OceanLED
OceanLED -001-500735-3010 TH HD Gen 2 Midnight Blue
OceanLED -001-500735-3010 TH HD Gen 2 Midnight Blue
Low stock: 1 left
Couldn't load pickup availability

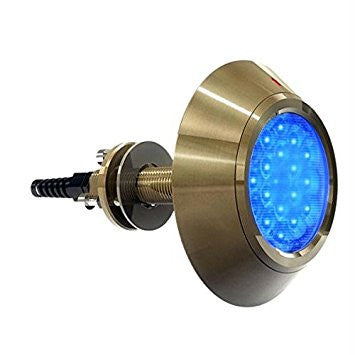

OCEAN LED 001-500735 OCEANLED 3010 TH HD GEN2 MIDNIGHT BLUE
The original Thru-Hull with the world's smallest hole cut-out for a thru hull light at only 1 is now brighter again ? the 3010TH HD Gen2 model is 43% brighter than its predecessor by exploiting the next generation of High Definition LEDs from Cree.
With 10,000-fixture lumen brightness and a 1-inch (25mm) profile head make the 3010TH the ideal underwater light for transom mount applications. Suitable for all hull types over 65' (20m) using 4 or more lights with spacing of 3-6' (1-1.8m) ? for metal hulls, choose the Delrin Isolation Sleeve accessory. Deutsch plug-and-play quick connectors make this light a quick fit. Maintenance is easy; just wipe away marine growth from its scratch resistant Tritonium? glass lens.
| Mounting Recommendations | 3010TH HD |
| Boat size | over 65' (20m) |
| Transom / Hull spacing | 3-6' (1-1.8m) |
| Transom quantity | 4+ |
| Maximum hull thickness | 31/2" (90mm) |
| Installation depth (to top of fixture) | 10-12in (250-300mm) |
| Technical | |
| Light output equivalent to | 2 x 100W HID Metal Halides |
| Fixture Lumens* (total light output from a finished fixture) | 10000 |
| Typical LED life expectancy | 40,000+ Hours |
| Minimum-Maximum operating voltage DC | 9-32V DC |
| Minimum-Maximum operating voltage AC | 90-270V AC |
| Current / Amp draw (DC) | 12V DC 10A24V DC 5A |
| Current / Amp draw (AC/optional) | 110V AC 50/60HZ 1.3A 240V AC 50/60HZ 0.6A |
| Approx. light penetration (avg. water quality) | 72' (22m) |
| Approx. Light penetration (perfect water quality) | up to 165' (50+m) |
| Driver type | External |
| Driver size (L x W x H) | TBA |
| Physical | |
| Diameter of fixture | 529/32" (150mm) |
| Profile (height) of fixture | 113/64" (30.6mm) |
| Total weight including electrical driver | 6.6lbs (3kgs) |
| Extension cable length (standard-hard wired to light) | 61/2' (2m) |
| Hole cut-out for cable entry | 1" (26mm) |
| Material | Aluminium |
